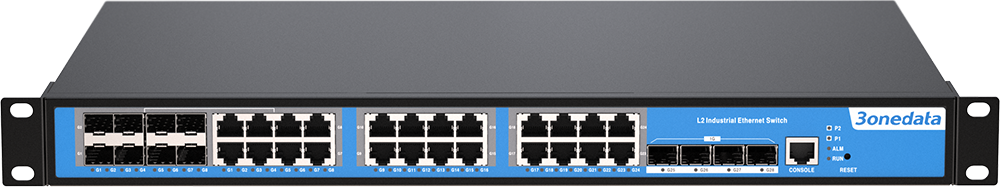

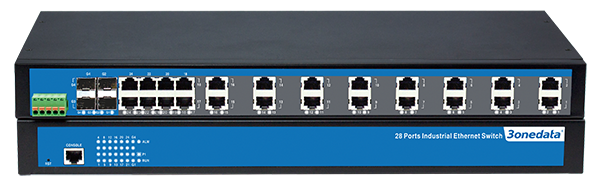

Overview of 3onedata's 28 Port Gigabit Layer 2 Managed Industrial Ethernet Switch IES5328 Series

IES5328 series are 28-port Gigabit managed industrial Ethernet switches. This series provides Gigabit SFP slots, Gigabit copper ports and Gigabit fiber and copper multiplexing port. It adopts 1U rack mounting, which can meet the requirements of various industrial networks.
Network management system supports a variety of network protocols and industry standards, such as ARP, ERPS, STP/ RSTP/MSTP, 802.1Q VLAN, QoS function, IGMP Snooping static multicast function, LLDP, port trunking, port mirror, etc. It has perfect management functions, supporting port configuration, port statistics, network diagnosis, rapid configuration, online upgrade, loop detection, etc. CLI, WEB, Telnet, SSH, SNMP and other access methods can be supported. Network management system could bring you great user experience though its friendly interface design and easy and convenient operation.
This product supports optional dual AC/DC power supply. The input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. When power supply or port has link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.


Additional Features
SNMPv1/v2c/v3 is used for network management of various levels
Port mirroring can conduct data analysis and monitoring, which is convenient for online debugging
QoS supports real-time traffic classification and priority setting
LLDP can achieve automatic topology discovery, which is convenient for visual management
DHCP server can be used for distributing IP address with different strategies
DHCP Snooping can ensure DHCP client gets IP address from legal DHCP server
DHCP relay function can realize IP address, gateway, DNS configuration cross network segment
File management is convenient for the device rapid configuration and online upgrading
Log management records the information of booting, operation and connection
Bandwidth management can reasonably distribute network bandwidth, preventing unpredictable network status
Port statistics can be used for the port real time traffic statistics
ARP could be used for MAC address resolution
User password can conduct user hierarchical management to improve the device management security
ACL can enhance network flexibility and security
Relay alarm is convenient for troubleshooting of construction site
Storm suppression can restrain broadcast, unknown multicast and unicast
TELNET configuration and SSH configuration guarantee secure access to data
VLAN is used for simplifying network planning
Port Trunking can increase network bandwidth and enhance the reliability of network connection to achieve optimum bandwidth utilization
IGMP Snooping, GMRP and static multicast can be used to filter multicast data to save network bandwidth
Bandwidth management and flow control can reasonably distribute network bandwidth, preventing unpredictable network status
Port isolation could achieve port isolation in the same VLAN and save VLAN resources
Ring and STP/RSTP/MSTP can achieve network redundancy, preventing network storm
Ping, Traceroute, Port Loopback and SFP Digital Diagnosis could achieve network diagnosis and troubleshooting
With high reliability and stability, ERPS could avoid broadcast storm caused by data loopback
Loop detection could efficiently eliminate the influence caused by port loopback by detecting the existence of loopback

Standard & Protocol	IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3ab for 1000Base-T IEEE 802.3z for 1000Base-X IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN IEEE802.1p for CoS IEEE 802.1AB for LLDP
Management	SNMP v1/v2c/v3 Centralized Management Devices, Port Mirroring, QoS, LLDP, DHCP Server, File Management, Log Management, Port Statistics, ARP
Security	User permission rating, ACL, port alarm, power alarm, storm suppression, Telnet configuration, SSH configuration, link flapping protection, DHCP snooping, loop detection
Switch Function	802.1Q VLAN, Port Trunking, Bandwidth Management, Flow Control, Port Isolation
Unicast / Multicast	Static Multicast, Multicast Passthrough, GMRP, IGMP-Snooping
Redundancy Technology	Ring, STP/RSTP/MSTP, ERPS
Troubleshooting	Ping, Traceroute, Port Loopback, SFP Digital Diagnosis
Time Management	NTP
Interface	Gigabit copper port: 10/100/1000Base-T(X) self-adaptive RJ45, automatic flow control, support full/half duplex mode, MDI/MDI-X self-adaption Gigabit SFP: 100/1000Base-X self-adaptive SFP slot Combo port: 10/100/1000Base-T(X) RJ45 or 100/1000Base-X SFP slot Console port: CLI command line management port(RS-232), RJ45 Alarm port: 2 5-pin 5.08mm pitch terminal blocks(relay occupies 2 pins), support 2 relay alarm outputs, current loading capacity is 5A@30VDC or 10A@125VAC
Indicator	Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator
Switch Property	Transmission mode: store and forward MAC address: 16K Packet buffer size: 12Mbit Backplane bandwidth: 56G
Power Supply	IES5328-16GT4GS8GC-2P220 Input voltage: 220VAC (100~240VAC/DC) Redundant power supply: support dual power supply redundancy Overcurrent protection: 5A Access terminal: single-phase socket with rocker switch IES5328-16GT4GS8GC-2P48 Input voltage: 48VDC (36~72VDC) Redundant power supply: support dual power supply redundancy Overcurrent protection: 3A Connection protection: anti-reverse connection Access terminal: 5-pin 5.08mm pitch terminal blocks (power supply occupies 2 pins) IES5328-16GT4GS8GC-2P24 Input voltage: 24VDC (18~72VDC) Redundant power supply: support dual power supply redundancy Overcurrent protection: 3A Connection protection: anti-reverse connection Access terminal: 5-pin 5.08mm pitch terminal blocks (power supply occupies 2 pins)
Power Consumption	No-load: 10.5W@220VAC Full-load: 25.3W@220VAC
Working Environment	Operating temperature: -40~75℃ Storage temperature:-40~85℃ Relative humidity: 5%～95% (no condensation)
Physical Characteristic	Housing: IP30 protection, metal Installation: 19-inch 1U rack mounting Weight: 3940g Dimension (W x H x D): 440.4mm×44mm×304.8mm
Industrial Standard	IEC 61000-4-2 (ESD, electrostatic discharge), Level 3 Air discharge:± 8kV Contact discharge: ±6kV IEC 61000-4-4 (EFT, electrical fast transient), Level 3 Power supply: ±2kV Signal: ±1kV IEC 61000-4-5 (Surge), Level 3 Power supply: differential mode±1kV, common mode±2kV Signal: differential mode±1kV, common mode±2kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
Authentication	CE, FCC, RoHS
Warranty	5 years

Available Models	Gigabit Copper Port	Gigabit SFP	Gigabit COMBO	Power Supply
IES5328-16GT4GS8GC-2P220	16	4	8	220VAC/DC (100~240VAC/DC) Redundant power supply
IES5328-16GT4GS8GC-2P48	16	4	8	48VDC(36~72VDC) Redundant power supply
IES5328-16GT4GS8GC-2P24	16	4	8	24VDC(18~72VDC) Redundant power supply
