Introduction

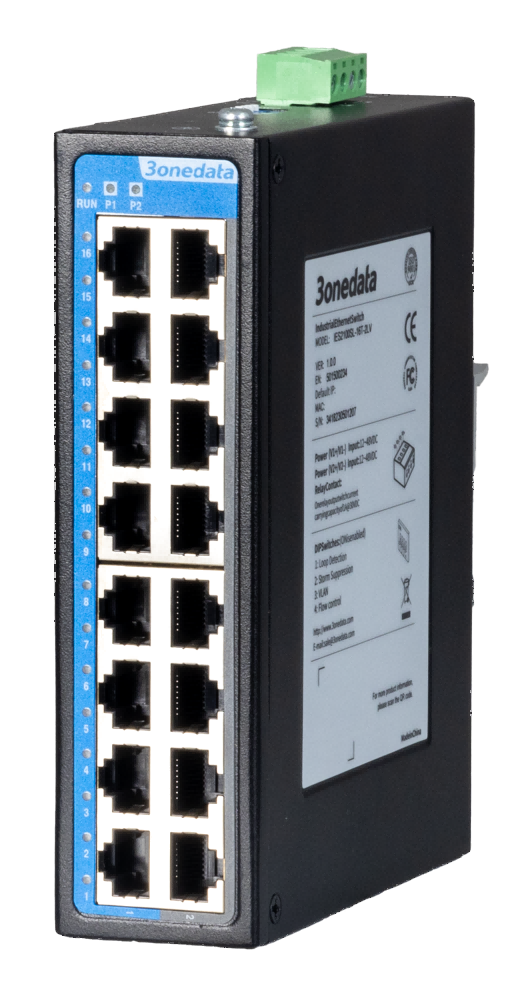

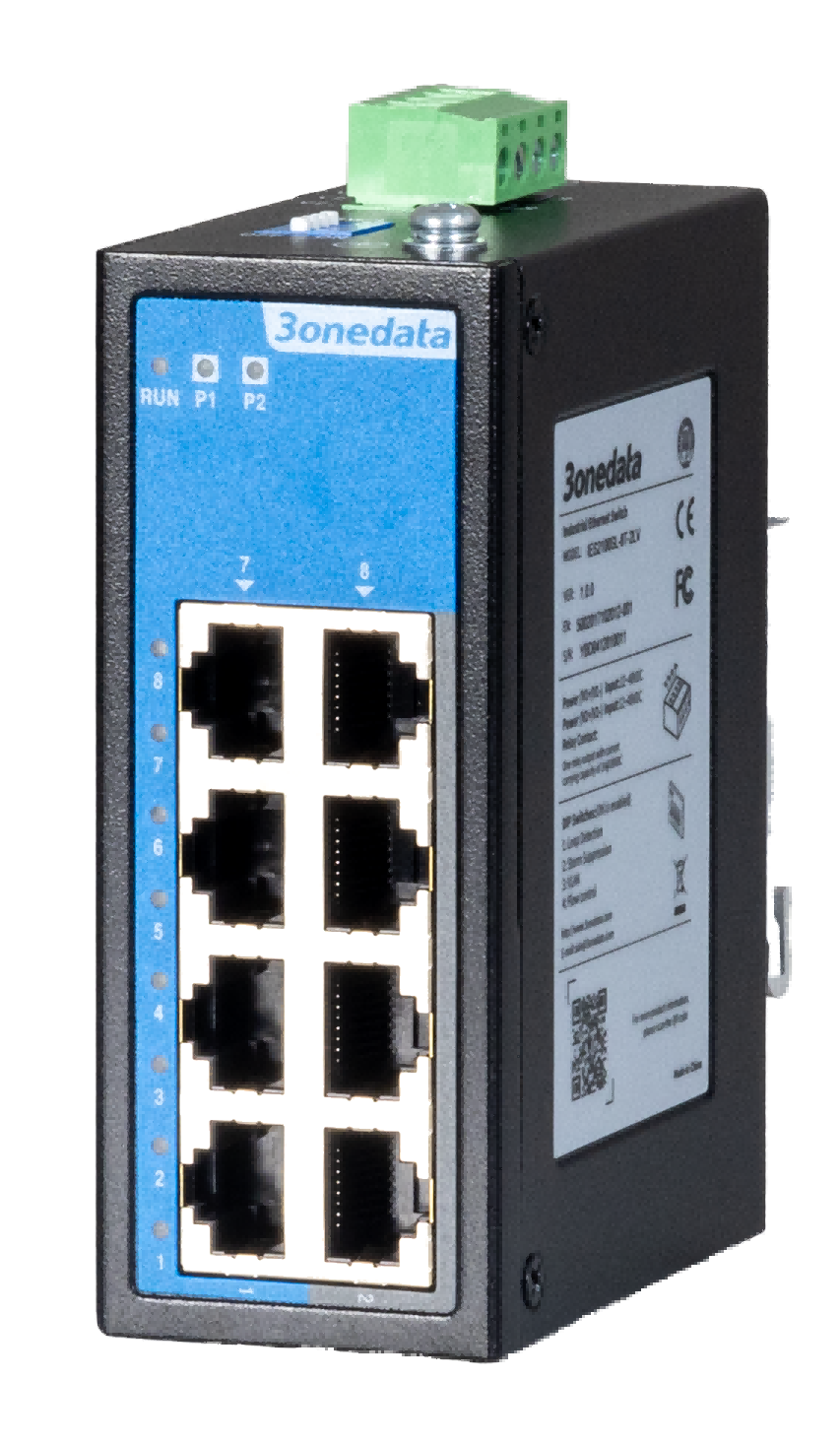

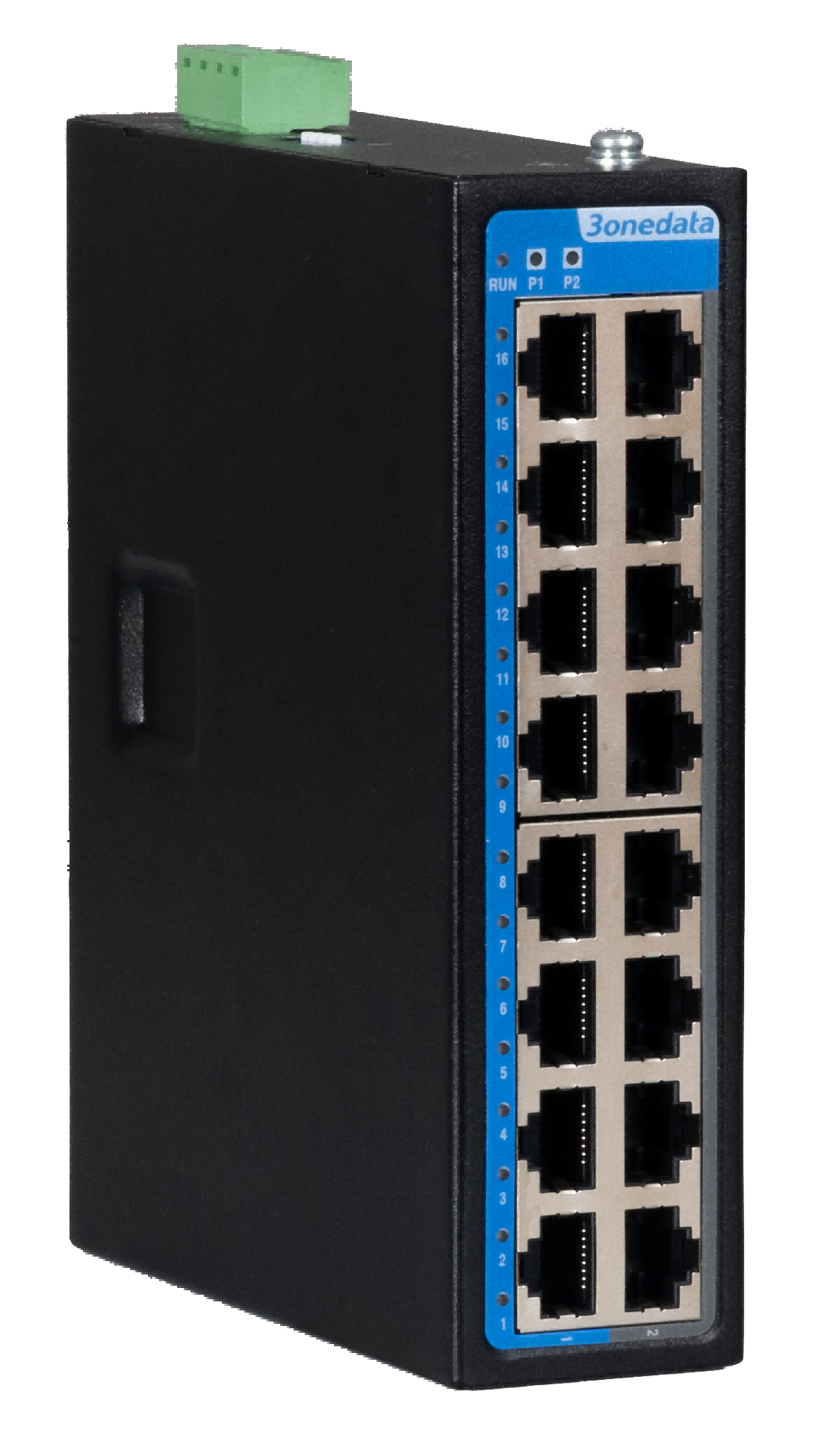

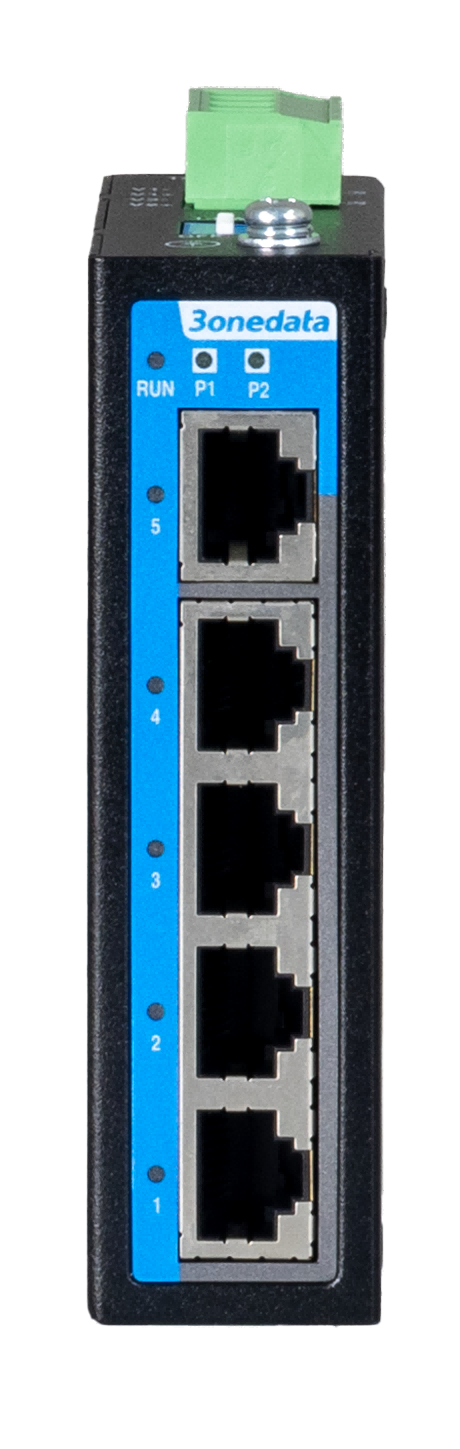

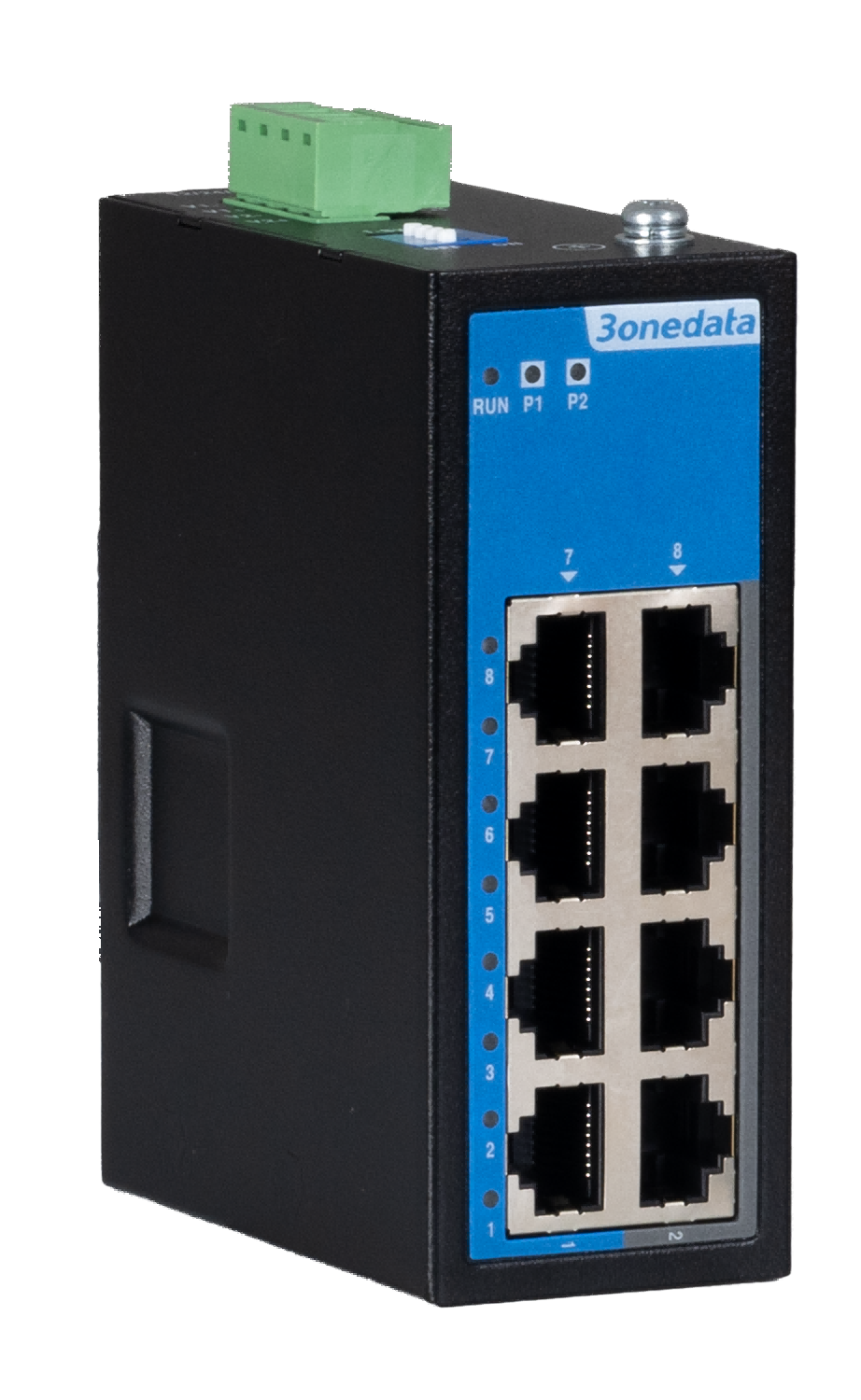

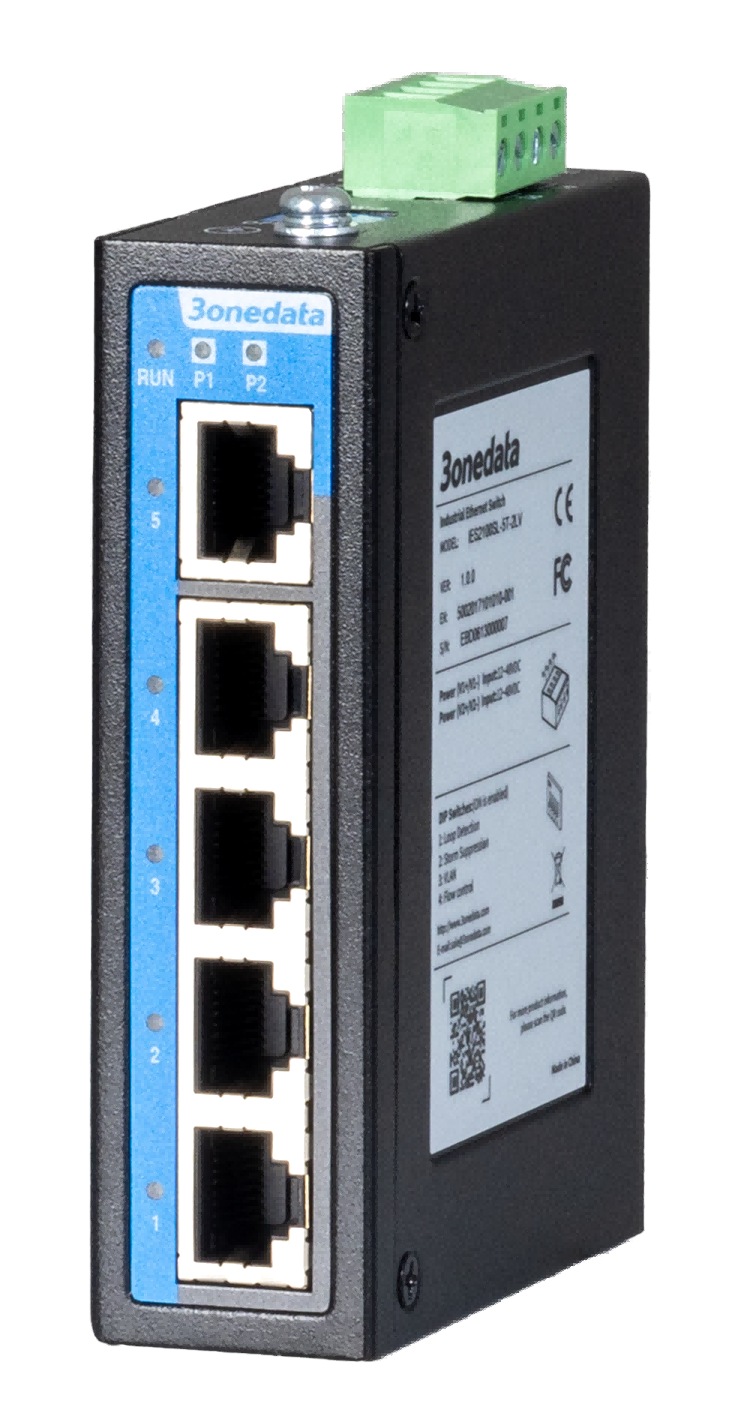

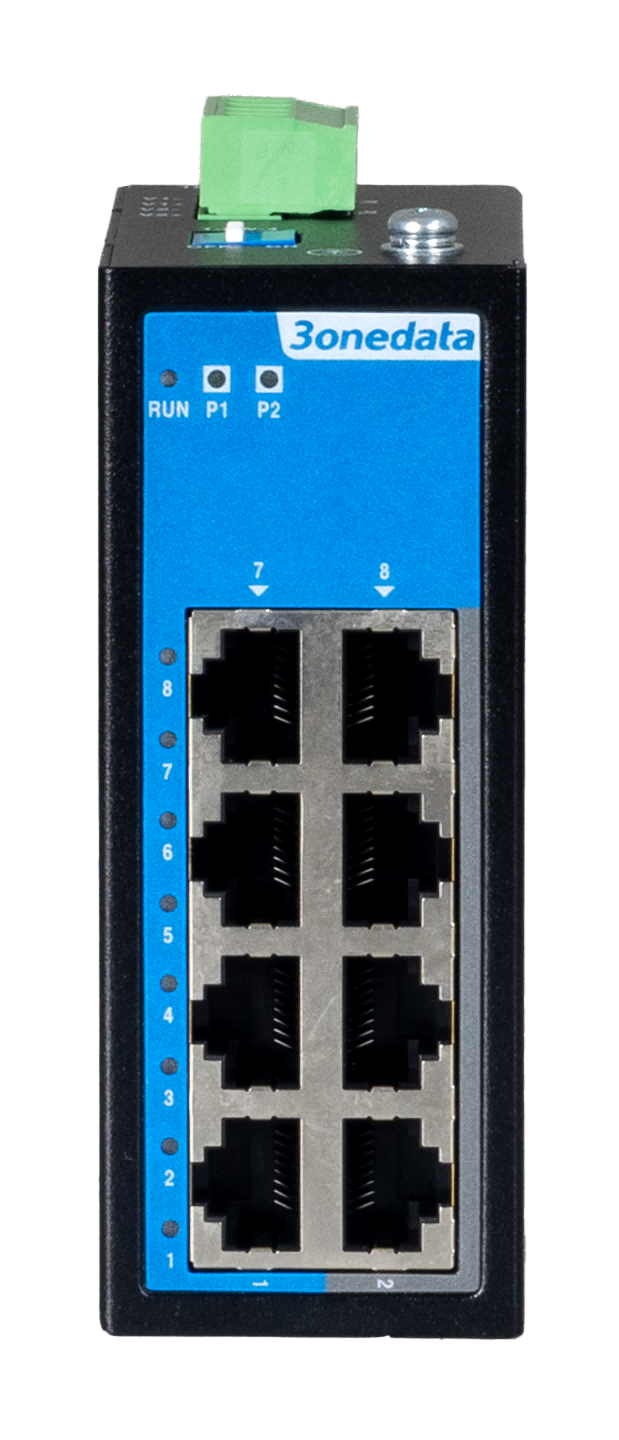

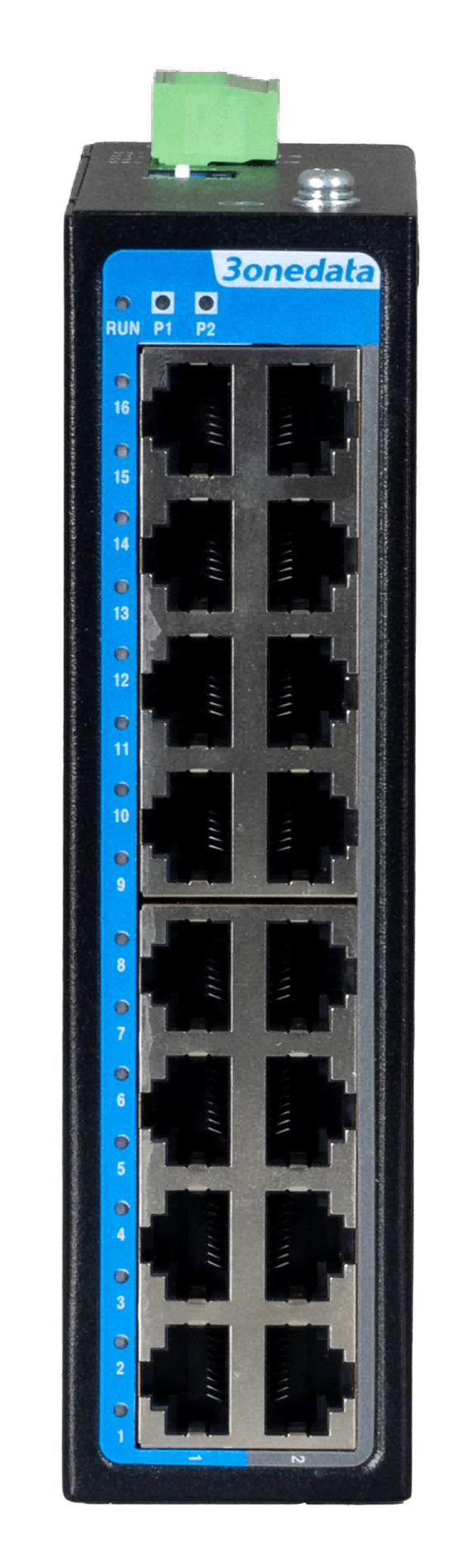

IES2100SL series are 5/8/16-port 100M unmanaged industrial Ethernet switches. This series provides 3 products and support 100M copper ports. They adopt DIN-Rail mounting to meet the requirements of different application scenes.

DIP switch can implement functions such as device storm suppression, flow control, VLAN, and loop detection. The input power supply is two independent power supply circuits that can ensure the device's normal operation when one power supply fails. Hardware adopts fanless, low power consumption, wide temperature, and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart city, safety city, intelligent manufacturing and other industrial fields.

Standard & Protocol	IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3x for Flow Control IEEE 802.1Q for VLAN
Interface	100M copper port: 10/100Base-T(X) self-adaptive RJ45, full/half duplex mode self-adaption, MDI/MDI-X autotunning DIP switch: l 5T/8T: 1-loop detection, 2-storm suppression, 3-VLAN, 4-flow control l 16T: 1-flow control, 2-storm suppression, 3/4-NC
Indicator	Power indicator, running indicator, interface indicator
Switch Property	Transmission mode: store and forward MAC address: 2K (5T/8T), 8K (16T) Backplane bandwidth: 1G (5T), 1.6G (8T) and 3.2G (16T) Switch time delay: <10μs
Power Supply	12/24/48 VDC (9~60VDC), dual power supply redundancy, using 4-pin 5.08mm pitch terminal blocks, support anti-reverse connection
Power Consumption	Available Models No-load Full-load IES2100SL-5T-2LV 0.2W@12VDC 0.8W@12VDC IES2100SL-8T-2LV 0.4W@12VDC 3.0W@12VDC IES2100SL-16T-2LV 0.7W@48VDC 2.9W@48VDC
Working Environment	Operating temperature: -40~75℃ Storage temperature: -40~85℃ Relative humidity: 5%～95% (no condensation)
Physical Characteristic	Housing: IP40 protection, metal Installation: DIN-Rail mounting Dimension (width× height× depth): 28mm×103mm×78mm(5T), 40.6mm×103mm×78mm (8T), 40.6mm×150mm×120mm (16T)
Industrial Standard	IEC 61000-4-2 (ESD, electrostatic discharge), Level 3 l Contact discharge: ±6kV l Air discharge: ±8kV IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3 l Power supply: ±2kV l Copper port: ±2kV IEC 61000-4-5 (Surge), Level 3 l Power supply: differential mode±1kV, common mode±2kV l Copper port: ±2kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
Authentication	CE, FCC, RoHS
Warranty	5 years
