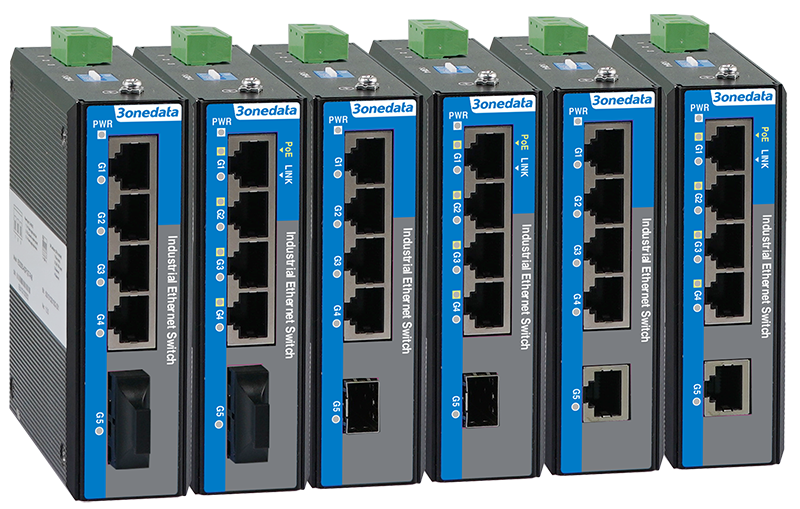

Overview of 3onedata's 5 Port Gigabit Unmanaged Industrial Ethernet Switch IES2305 Series
IES2305 series are 5-port unmanaged industrial PoE/Non-PoE Ethernet switches. This series provide 9 products to choose from and support Gigabit fiber ports, Gigabit copper ports, Gigabit PoE copper ports and Gigabit SFP, as well as multiple power supply schemes, 100~240VAC, 12~48VDC and 48VDC PoE. They adopt DIN-Rail mounting to meet the requirements of different application scenes.
The DIP switch could implement functions like jumbo frame, one-key VLAN, 100M port and flow control. The hardware adopts fanless, low power consumption and wide temperature and voltage design, which has passed rigorous industrial standard tests, and suits for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, railway transportation, smart city, safe city, new energy, intelligent manufacturing and other industrial fields.
| Standard & Protocol | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100BaseFX IEEE 802.3z for 1000Base-X IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow Control IEEE 802.1Q for VLAN IEEE 802.3af for PoE IEEE 802.3at for PoE+ |
| PoE | The maximum power of PoE port: 30W The power supply pin of PoE: V+, V+, V-, V- correspond to Pin 1, 2, 3, 6 |
| Interface | Gigabit copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning Gigabit fiber port: 1000Base-FX, optional SC/ST/FC Gigabit SFP: 1000 Base-X SFP Gigabit POE copper port: 10/100/1000 Base-T(X) RJ45, automatic flow control, full/half duplex mode, MDI/ MDI-X autotunning, POE port, output power of 15W or 30W. |
| Indicator | Port Indicator, Power Supply Indicator, PoE Indicator |
| Switch Property | MAC address: 2K Backplane bandwidth: 9.125G Transmission mode: store and forward Switch time delay: <10μs |
| Power Supply | Optional AC/DC power supply, 12~ 48VDC, 48VDC PoE or 100~240VAC 3-pin 7.62mm pitch terminal blocks |
| Power Consumption | | Available Models | No-load @48VDC | Full-load @48VDC | | IES2305-4GP1GT-P48 IES2305-4GP1GS-P48 | ≤1.4W | ≤100.6W | |
| Working Environment | Operating temperature: -40~75℃ Storage temperature: -40~85℃ Relative humidity: 5%～95% (no condensation) |
| Physical Characteristic | Housing: IP40 protection, metal Installation: DIN-Rail mounting Dimension (W x H x D): 35mm×110mm×95mm Weight≤ 367g |
| Industrial Standard | IEC 61000-4-2 (ESD, electrostatic discharge), Level 4 Air discharge: ±15kV Contact discharge: ±8kV IEC 61000-4-4 (EFT, electrical fast transient), Level 4 Power supply: ±4kV Signal: ±2kV IEC 61000-4-5 (Surge), Level 4 Power supply: differential mode±2kV, common mode±4kV Signal: differential mode±2kV, common mode±4kV Shock: IEC 60068- 2- 27 Free fall: IEC 60068- 2- 32 Vibration: IEC 60068- 2- 6 |
| Certification | CE, FCC, RoHS |
| Warranty | 5 years |
| Available Models | Gigabit Copper Port | Gigabit Fiber Port | Gigabit SFP | Gigabit PoE Copper Port | Power Supply |
| IES2305-5GT-P48 | 5 | - | - | - | 12~48VDC |
| IES2305-4GT1GF-P48 | 4 | 1 | - | - |
| IES2305-4GT1GS-P48 | 4 | - | 1 | - |
| IES2305-5GT-P220 | 5 | - | - | - | 100~240VAC |
| IES2305-4GT1GF-P220 | 4 | 1 | - | - |
| IES2305-4GT1GS-P220 | 4 | - | 1 | - |
| IES2305-4GP1GT-P48 | 1 | - | - | 4 | 48VDC PoE |
| IES2305-4GP1GS-P48 | - | - | 1 | 4 |
| IES2305-4GP1GF-P48 | - | 1 | - | 4 |
