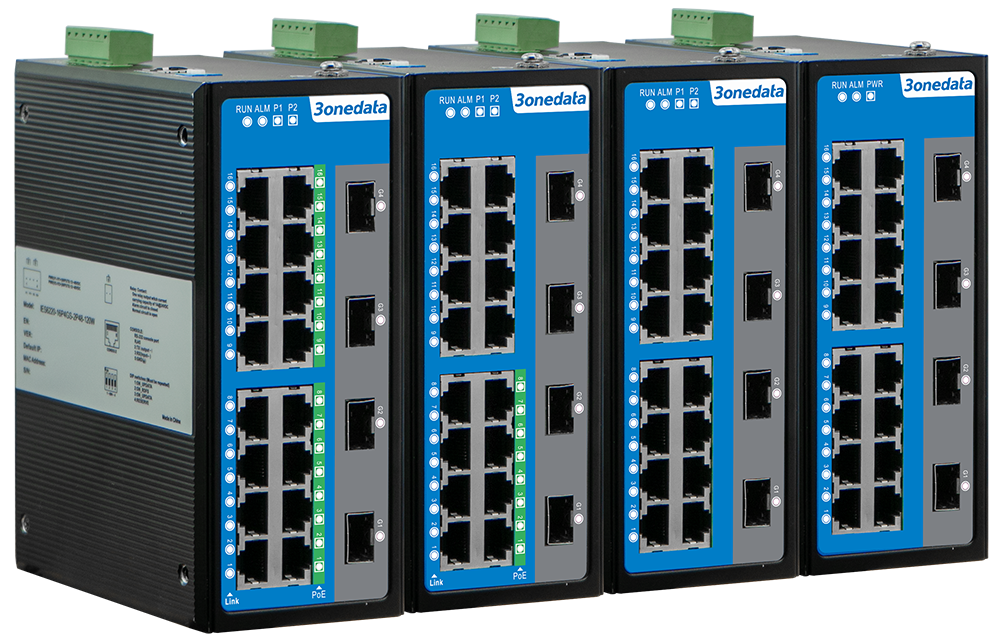

Overview of 3onedata's 20 Port Gigabit Ethernet Unmanaged Switch IES2220 Series
IES2220 series are 20-port 100M/Gigabit layer 2 unmanaged industrial Ethernet switches. This series provide 100M copper port (optional PoE) and Gigabit SFP slot, and the PoE power supply conforms to the protocol standard of IEEE802.3af/at. They also adopt DIN-Rail or wall mounting, which can meet the requirements of different scenes.
This series support optional AC/DC power supply. And DC power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.
| Standard & Protocol | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3z for 1000Base-X IEEE 802.3af for PoE IEEE 802.3at for PoE+ |
| PoE | The maximum power of single PoE port: 15/30W The power supply pin of PoE: V+, V+, V-, V- correspond to Pin 1, 2, 3, 6 |
| Interface | 100M copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning 100M PoE copper port: 10/100Base-T(X) RJ45, automatic flow control, full/half duplex mode, MDI/MDI-X autotunning, POE port, output power of 15W or 30W Gigabit SFP port: 1000Base-SFP Console port: reserved Alarm port: reserved |
| LED Indicator | Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator (reserved), PoE Indicator (only for PoE products) |
| Switch Property | Transmission mode: store and forward MAC address: 8K Packet buffer size: 3Mbit Backplane bandwidth: 12.8G Switch time delay: <10μs |
| Power Requirement | Optional 24VDC, 48VDC or 220VAC, 6 pins 5.08mm pitch terminal blocks, including 4 pins power supply terminal blocks DC dual power supply redundancy, anti-reverse connection |
| Power Consumption | DC products No-load: ≤157W@48VDC Full-load: ≤157.2W@48VDC AC products No-load: ≤9.2W@220VAC Full-load: ≤9.6W@220VAC |
| Environmental Limit | Operating temperature range: -40~75℃ Storage temperature range: -40~85℃ Relative humidity: 5%～95%(no condensation) |
| Physical Characteristic | Housing: IP40 protection, metal Installation: DIN-Rail or wall mounting Dimension (W x H x D): 70mm×160mm×130mm Weight: ≤1.06kg |
| Industrial Standard | IEC 61000-4-2 (ESD), Level 3 Air discharge: ±8kV Contact discharge: ±6kV IEC 61000-4-4 (EFT), Level 3 Power supply:±2kV Ethernet port: ±1kV Relay: ±2kV IEC 61000-4-5 (Surge), Level 3 Power supply: common mode±2kV, differential mode±1kV Ethernet port: common mode±2kV, differential mode±1kV Relay: common mode±2kV, differential mode±1kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| Certification | CE, FCC, RoHS |
| Warranty | 5 years |
| Model | 100M Copper Port | 100M POE Copper Port | Gigabit SFP Slots | Power Supply | PoE Power |
| IES2220-16T4GS-2P48 | 16 | - | 4 | 12~48VDC dual power supply | - |
| IES2220-16T4GS-P220 | 16 | - | 4 | 85~264VAC single power supply | - |
| IES2220-16P4GS-2P48-120W | - | 16 | 4 | 48VDC dual power supply | 120W |
| IES2220-16P4GS-2P48-200W | - | 16 | 4 | 48VDC dual power supply | 200W |
| IES2220-16P4GS-2P24-120W | - | 16 | 4 | 24VDC dual power supply | 120W |
| IES2220-8T8P4GS-2P48-120W | 8 | 8 | 4 | 48VDC dual power supply | 120W |
| IES2220-8T8P4GS-2P48-200W | 8 | 8 | 4 | 48VDC dual power supply | 200W |
| IES2220-8T8P4GS-2P24-120W | 8 | 8 | 4 | 24VDC dual power supply | 120W |
