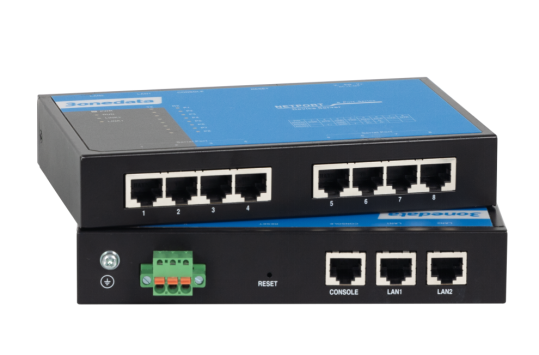

Overview of 3onedata's 4 Port RS-232/485/422 to 2 Port Ethernet Converter NP314T Series
NP314T, NP318T series are the serial device servers that can make serial device be equipped with networking capability instantly and centrally manage the scattered serial devices and hosts via network. This series provide 4 products and support a variety of interfaces including 100M copper ports, 3IN1 serial ports and RS-485 serial ports. They adopt desktop/wall mounting to meet the requirements of different application scenes.
Serial server supports multiple network protocols, such as TCP, UDP, TELNET, ARP, ICMP, HTTP, HTTPS, SNMP, SSH, SMTP, SNTP, DNS, BOOTP and DHCP protocol. It also possesses complete management functions, including Access Control, Rapid Configuration, Online Upgrading and so on. Each serial port supports 4 TCP or UDP session connections, and it also supports RealCom, TCP Server, TCP Client, UDP Server, UDP Client, UDP Rang, UDP Multicast operating modes and TELNET, WEB, SSHD access modes. Furthermore, supplied management configuration tool based on Windows platform can guide the user to manage and configure the device, achieving immediate networking of serial device via simple settings. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.
RESET button can achieve the restore factory defaults function. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can adapt to the industrial scene environment with harsh requirements for EMC. It can be widely used in custom checkpoint system, smart gas station, data center and industrial automation, etc.
Additional Features Support 2 10/100Base-T(X) self-adaptive Ethernet interfaces and provide dual IP and dual MAC addresses to meet the requirements of multi-network management or network backups
Support 110bps-115200bps (customizable 921600bps) line speed and non-blocking communication
Support operating modes like RealCom, TCP Server, TCP Client, UDP Server, UDP Client, UDP Rang and UDP Multicast
Support cross-gateway and cross-router communication
Support multiple hosts polling mode, which allows multiple hosts to access the same serial port
Support delimiter matching communication, achieving various demands for serial port packaging
Support FIFO, compatible with various old type terminal devices
Support IP address and MAC address filtering, which can achieve accurate access control easily
Support graded user management to implement humanized authority management
Support serial port status, parameters and communication statistical monitoring, making the communication status easy to read
Support virtual serial port drive access mode and automatic connection recovery after network interruption
Flexible serial port data framing setting, which can satisfy user’s various demands for data packets segmentation
Support standard TCP/IP SOCKET application access
TCP supports multi-connection, which allows maximum 4 users to monitor or manage the serial device simultaneously
UDP supports single machine or multi-machine communication, which allows multiple users to monitor or manage the serial device simultaneously
Support multiple configuration forms like Windows configuration tool, TELNET, SSHD and WEB
SSHD and HTTPS can guarantee the access security of data
Support multiple alarm methods, including e-mail alarm, log alarm and system alarm
Support multiple alarm events including warm start and cold start
Network diagnosis and troubleshooting could be conducted via Ping, Traceroute and packet capture diagnosis
Support ARP function, which can prevent the MAC address of the device being aged by the switch or router and unable to communicate
Support static routing, routing table could be added manually
