Introduction

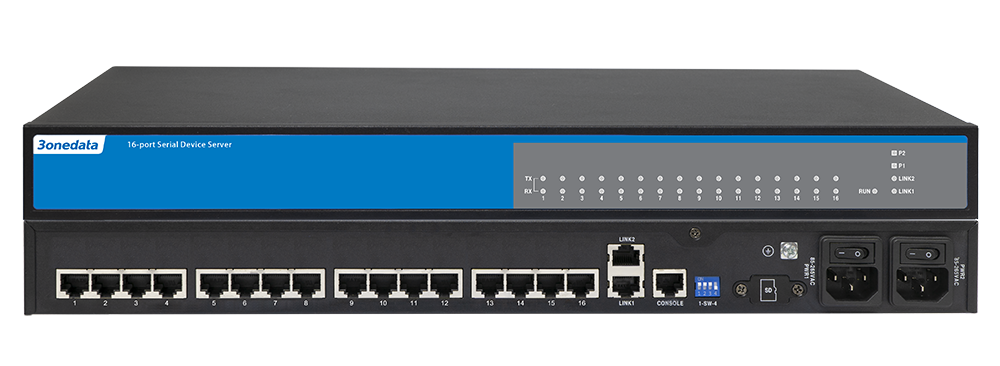

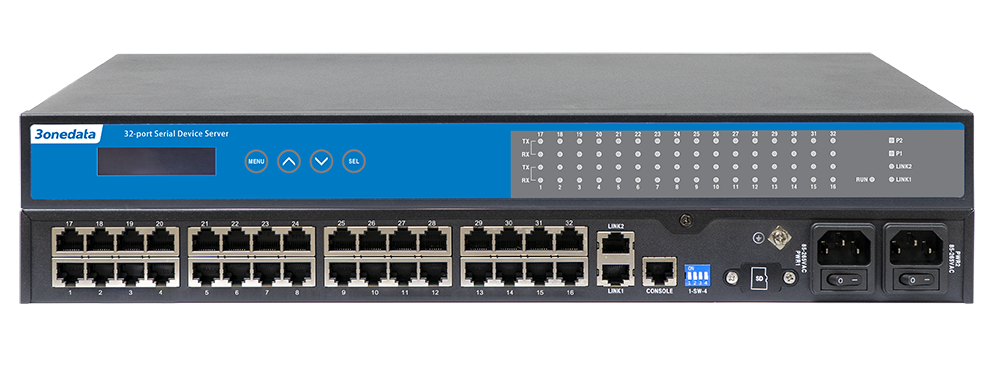

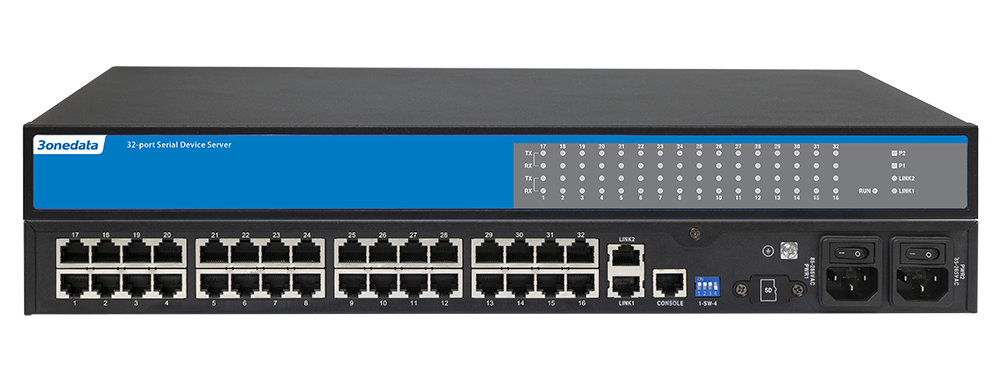

NP5100 series are the serial device servers that can make serial device be equipped with networking capability instantly and centrally manage the scattered serial devices and hosts via network. This product supports 8/16/32 RS-232/485/422 serial ports to 2 100M Ethernet copper ports. It adopts rack mounting to meet the requirements of different application scenes.
Serial device server supports multiple network protocols, such as TCP, UDP, RFC2217, TELNET, ARP, ICMP, HTTP, HTTPS, SNMP, SSH, SMTP, SNTP, DNS, BOOTP and DHCP protocol. It also possesses complete management functions, including Access Control, Rapid Configuration, Online Upgrading and so on. Each serial port supports 4 TCP or UDP session connections, and it also supports RealCom, Reverse RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast, Telnet, Reverse Telnet, RFC2217, Redundant COM, DRDAS RealCom and DRDAS TCP Server work modes and TELNET, WEB and SSHD access modes. Furthermore, supplied management configuration tool based on Windows platform can guide the user to manage and configure the device, achieving immediate networking of serial device via simple settings. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.

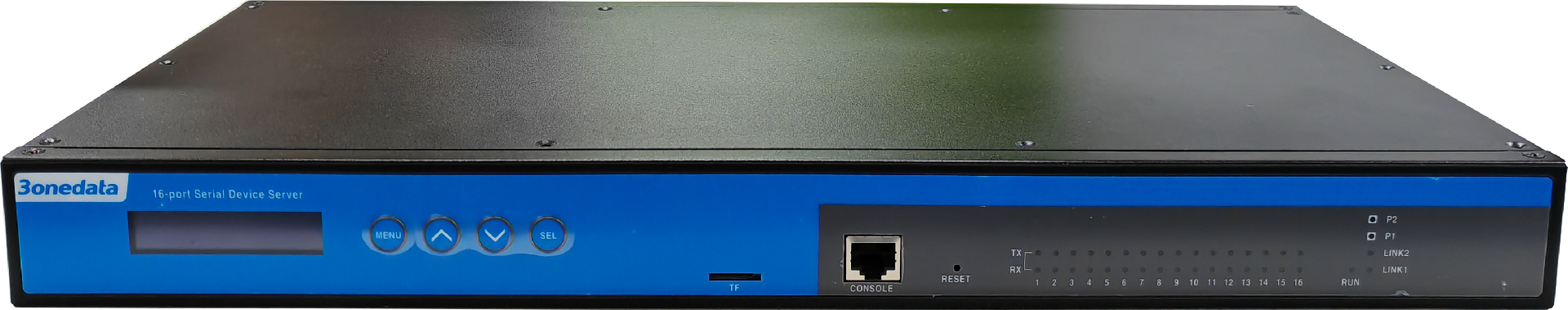

This product supports optional OLED display, which could conduct IP address configuration without using external device. SD card can achieve software upgrade of the device. Support setting pull up resistor and terminal resistance by DIP switch. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can adapt to the industrial scene environment with harsh requirements for EMC. It can be widely used in custom checkpoint system, smart gas station, data center and industrial automation, etc.
Additional Features
u Support 2 10/100Base-T(X) self-adaptive Ethernet interfaces and provide dual IP and MAC addresses to meet the requirements of multi-network management or network backup
u Support 110bps-921600bps line speed and non-blocking communication
u Support RealCom, Reverse RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast, Telnet, Reverse Telnet, RFC2217, Redundant COM, DRDAS RealCom, DRDAS TCP Server and other operating modes

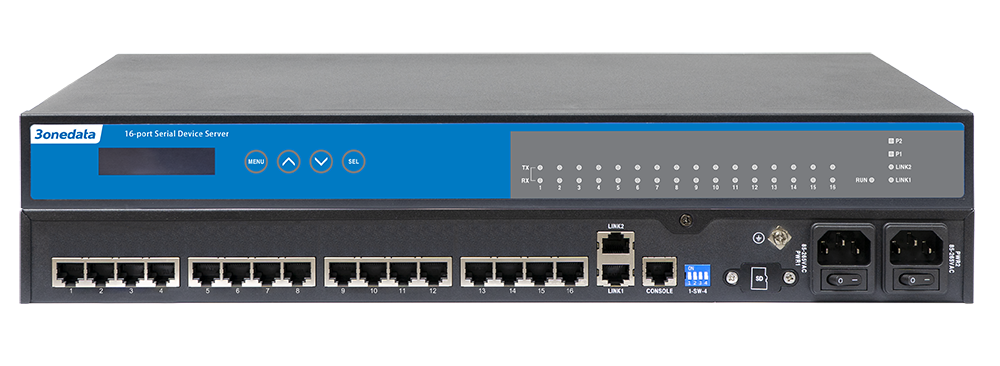

u Support OLED display that could configure device IP address
u Support cross-gateway and cross-router communication
u Support multiple hosts polling mode, which allows multiple hosts to access the same serial port
u Support delimiter matching communication, achieving various demands for serial port packaging
u Support FIFO, compatible with various old type terminal devices
u Support IP address and MAC address filtering, which can achieve accurate access control easily
u Support graded user management to implement humanized authority management
u Support serial port status, parameters and communication statistical monitoring, making the communication status easy to read
u Support RTS/CTS, DTR/DSR and XON/XOFF flow control
u Support virtual serial port drive access mode and automatic connection recovery after network interruption
u Flexible serial port data framing setting, which can satisfy user’s various demands for data packets segmentation
u Support standard TCP/IP SOCKET application access
u TCP supports multi-connection, which allows maximum 4 users to monitor or manage the serial device simultaneously
u UDP supports single machine or multi-machine communication, which allows multiple users to monitor or manage the serial device simultaneously
u Support TELNET and Reverse TELNET modes, build TELNET protocol session to realize the conversion of serial port data and Ethernet data between terminal device and server
u Support RFC2217 protocol, which can make serial port present in the host as local COM port
u Support multiple configuration forms like Windows configuration tool, TELNET, SSHD and WEB
u SSHD and HTTPS can guarantee the access security of data
u Support multiple alarm methods, including e-mail alarm, log alarm and system alarm
u Support multiple alarm events including power supply connection, warm start, cold start, DCD and DSR
u Conduct network diagnosis and troubleshooting via Ping and Traceroute
u Support ARP function, which can avoid the failure of communication due to the MAC address of serial server being aged by switch or router.
u Support static routing, routing table could be added manually
