NP318T Series

8 Port RS-232/485/422 to 2 Port Ethernet Serial Device Server

Support 8 RS-485/422 or 3IN1 serial port to 2 10/100Base-T(X) self-adaptive Ethernet interface
Support RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast and other operating modes
Support 12~48VDC wide voltage input range
GET A QUOTE
Overview
Specifications
Models
Resources

Overview of 3onedata's 8 Port RS-232/485/422 to 2 Port Ethernet Serial Device Server NP318T Series

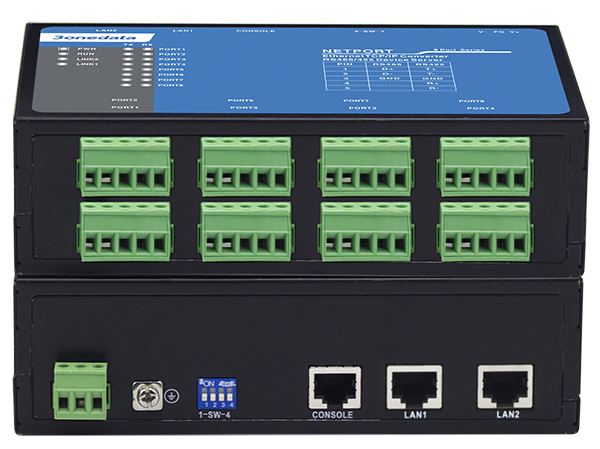

NP318T series are the serial device server that can make serial device be equipped with networking capability instantly and centrally manage the scattered serial devices and hosts via network. This series include 2 types of products and provide 8 RS-485/422 or 3IN1 serial ports to 2 100M Ethernet copper ports. Thereinto, RS-485/422 supports electromagnetic isolation of serial port. It adopts wall/desktop mounting to meet the requirements of different application scenes.
Serial device server supports multiple network protocols, such as TCP, UDP, SNMP, TELNET, ARP, ICMP, HTTP, DNS and DHCP protocol. It also possesses complete management functions, including Access Control, Rapid Configuration, Online Upgrading and so on. Each serial port supports 4 TCP or UDP session connections, and it also supports RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast operating modes and TELNET, WEB access modes. Furthermore, supplied management configuration tool based on Windows platform can guide the user to manage and configure the device, achieving immediate networking of serial device via simple settings. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.
DIP switch can achieve restore factory defaults of the device. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in PLC control and management, Building Automation System, Health Care Automation System, measuring instrument and environmental forces monitoring system.


Additional Features
Support 2 10/100Base-T(X) self-adaptive Ethernet interfaces, which provide double IP and MAC addresses to meet the requirements of network management or backup
Support 300bps-115200bps line speed and non-blocking communication
Support RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang, UDP Multicast and other operating modes
Support across gateway and routing communication
Support multiple hosts polling mode, which allows multiple hosts to access the same serial port
Support delimiter matching communication, achieving various demands for serial port packaging
Support FIFO, compatible with various old type terminal devices
Support IP address and MAC address filtering, which can easily achieve accurate access control
Support classification of user management to realize humanized permission management
Support serial port status and parameters monitoring, ensuring the communication status be clear at a glance
Support RTS/CTS, DTR/DSR and XON/XOFF flow control
Support SNMP network management
Compatible with various virtual serial port management software
Support virtual serial port drive access mode and automatic connection recovery after network interruption
Flexible serial port data framing setting, which can satisfy user’s various demands for data packets segmentation
Support standard TCP/IP SOCKET application access
TCP supports multi-connection, which allows maximum 4 users to monitor or manage the serial device simultaneously
UDP supports single machine or multi-machine communication, which allows multiple users to monitor or manage the serial device simultaneously
Support Windows configuration tool, TELNET, WEB and other configuration forms
