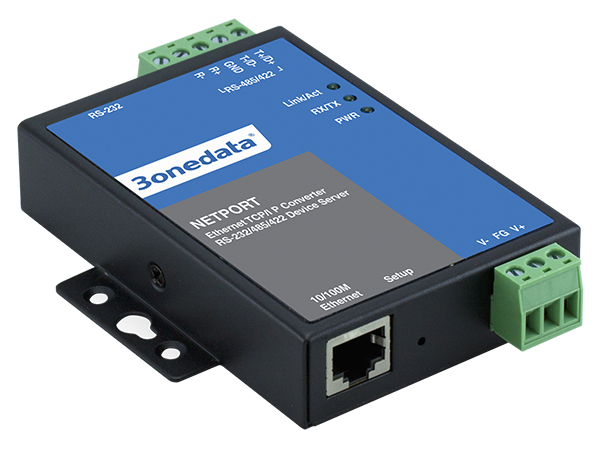

NP301

1 Port RS-232/485/422 Serial Device Server

Support 1 serial port to 1 10/100Base-T(X) self-adaptive Ethernet interface
Support TCP Server, TCP Client, TCP Auto, UDP, Advanced TCP Server, Advanced UDP and other operating modes
Support 9~48VDC power supply input
Support -40~75℃ wide temperature operation
GET A QUOTE
Overview
Specifications
Models
Resources

Overview of 3onedata's 1 Port RS-232/485/422 Serial Device Server NP301

NP301 is the serial device server that can make serial device be equipped with networking capability instantly and centrally manage the scattered serial devices and hosts via network. The product supports 1 RS-232/RS-422 /RS-485 to 1 100M Ethernet copper port. It adopts wall mounting to meet the requirements of different application scenes.
Serial device server supports multiple network protocols, such as TCP, UDP, ARP, ICMP, HTTP, DNS and DHCP protocol. It also possesses complete management functions, including Access Control, Rapid Configuration, Online Upgrading and so on. Each serial port supports 4 TCP or UDP session connections, and it also supports TCP Server, TCP Client, TCP Auto, UDP, Advanced TCP Server, Advanced UDP operating modes and AT, WEB access modes. Furthermore, supplied management configuration tool based on Windows platform can guide the user to manage and configure the device, achieving immediate networking of serial device via simple settings. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.
Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in PLC control and management, Building Automation System, Health Care Automation System, measuring instrument and environmental forces monitoring system.


Additional Features
Adopt 32 bits ARM processor
Support 10/100Base-T(X) self-adaptive Ethernet interface
Support AUTO MDI/MDIX, which can be connected via crossover cable and straight-through cable
Support 300bps-115200bps line speed and non-blocking communication
Support low power consumption mode and high performance mode
Support TCP Server, TCP Client, TCP Auto, UDP, Advanced TCP Server and Advanced UDP operating mode
Support AT command, which is convenient for the secondary development of users
Support DNS, which can achieve communication via domain name
Support across gateway and routing communication
Support virtual serial port drive access mode and automatic connection recovery after network interruption
Flexible serial port data framing setting, which can satisfy user’s various demands for data packets segmentation
Support standard TCP/IP SOCKET application access
TCP supports multi-connection, which allows maximum 4 users to monitor or manage the serial device simultaneously
UDP supports single machine or multi-machine communication, which allows multiple users to monitor or manage the serial device simultaneously
Support Windows configuration tool, serial port, WEB and other configuration forms
Support local and remote system firmware upgrading
