3onedata's Roadmap in Q1 2022
In the first quarter of 2022, we are going to launch five series of products, including two series of Ethernet switches, two series of serial device servers and one CAN server. Here are the brief introductions of the new products.

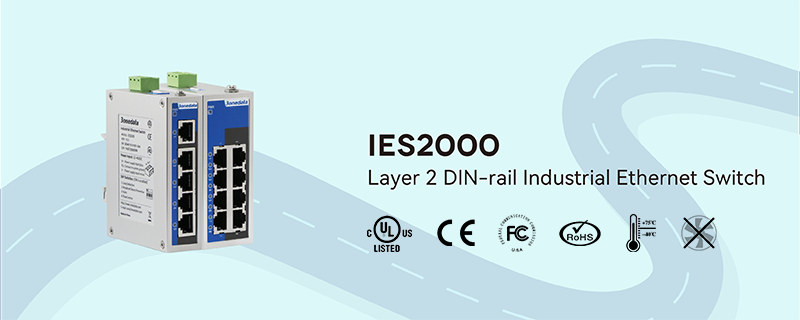

IES2000 Series - 5/8/16-port Layer 2 DIN-rail Industrial Ethernet Switch
  • Dual power supply
  • Support 5/8/16 100M/1000M copper ports
  • Optinal 100M/1000M copper PoE or Non-PoE
  • PoE power supply conforms to the protocol standards of IEEE 802.3af/at
  • Input voltage: 12~48VDC/24VAC
  • Support -40~75℃ wide operating temperature range
  • Anti-reverse connection protection, built-in over-current 3.0A protection
  • IP40 protection, metal shell

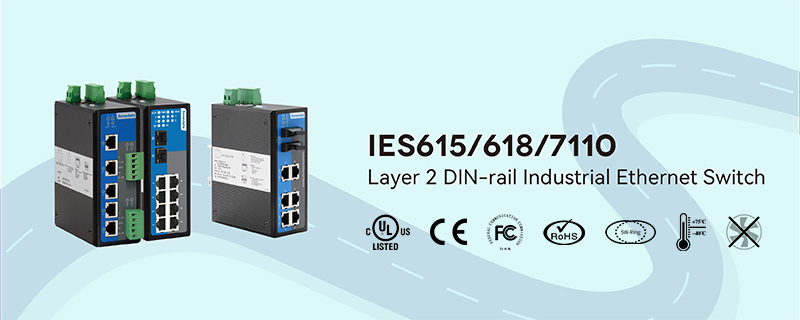

IES615/IES618/IES7110 Series - Layer 2 DIN-rail Industrial Ethernet Switch

  • Support 5/8 100M copper ports
  • Maximum 2*1000M Combo Port
  • Adopt SW-Ring patent technology, support single ring, coupling ring, chain, Dual-homing, automatic recovery time of network failure < 20ms
  • Support IPv6
  • Input power supply 9~60VDC, redundant power supply, anti-reverse connection and non-polarity
  • Support -40~75℃ wide operating temperature range

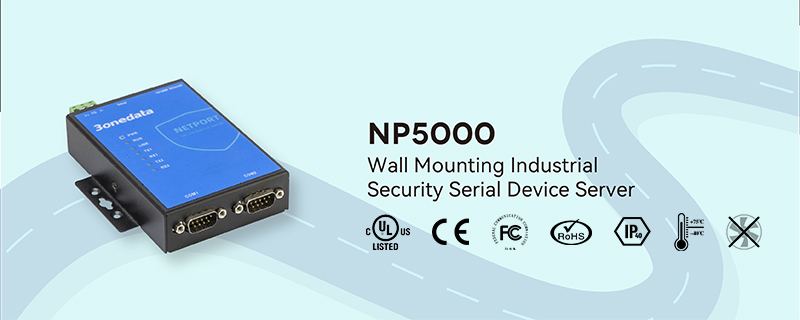

NP5000 Series - Wall Mounting Industrial Security Serial Device Server
  • Support 1/2/4/8 serial ports to 1/2 10/100Base-T(X) self-adaptive Ethernet interfaces
  • Support SSH, Reverse SSH, Secure Pair Master, Secure Pair Slave, Secure RealCOM, Secure TCP Client, Secure TCP Server security operating modes
  • Support Reverse RealCom, UDP Server, UDP Client, UDP Rang, UDP Multicast, Telnet, Reverse Telnet, RFC2217,
  • Redundant COM, DRDAS RealCom, DRDAS TCP Server and other operating modes
  • Support IPv6
  • Support heartbeat package and registration package
  • Support 50bps-921600bps line speed and non-blocking communication
  • Support dual power supply 12~48VDC wide voltage input
  • Support -40~ 75℃ wide temperature operation
  • Support UL certification

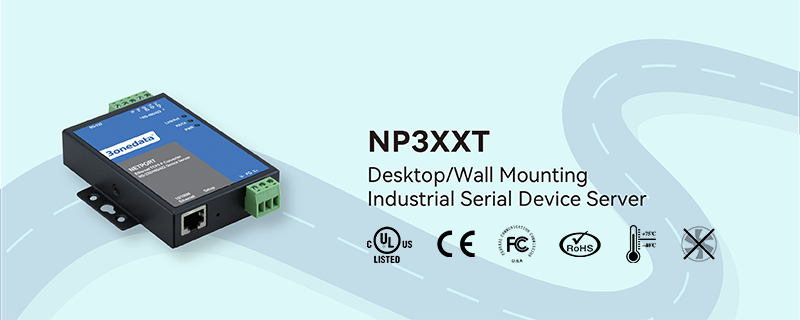

NP3XXT Series - Desktop/Wall Mounting Industrial Serial Device Server

  • Support 1/2/4/8 3IN1 or RS-485 serial ports to 1/2 10/100Base-T(X) self-adaptive Ethernet interfaces
  • Support IPv6
  • Support heartbeat package and registration package
  • Support 50bps-921600bps line speed and non-blocking communication
  • Support UL certification
  • Support multiple operating modes like RealCom, TCP Server, TCP Client, UDP Server, UDP Client, UDP Rang and UDP Multicast
  • Support 12~48VDC wide voltage input
  • Support -40~75℃ wide operating temperature range

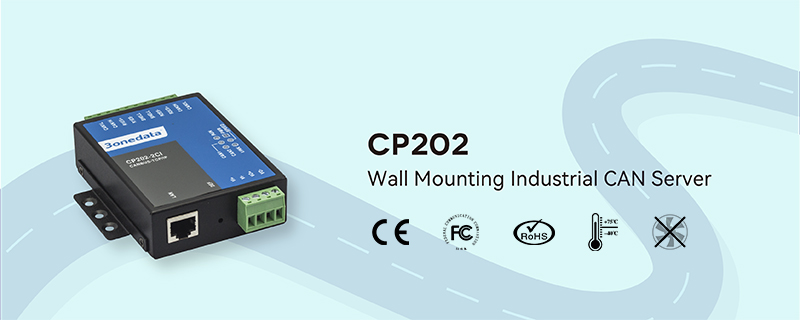

CP202 - Wall Mounting Industrial CAN Server

  • Support 2 CAN to 1 10/100Base-T(X) self-adaptive Ethernet interface
  • Support IPv6
  • Support multiple operating modes like TCP Server, TCP Client, UDP Server, UDP Client, UDP Rang and UDP Multicast
  • Support 5K~1000Kbps arbitrary baud rate
  • Support -40～75℃ wide operating temperature range
