3onedata will introduce a variety of new products in the first quarter of 2021, including 10G Ethernet switch, secure serial device server, wireless AP, etc., let's have a quick flip through.

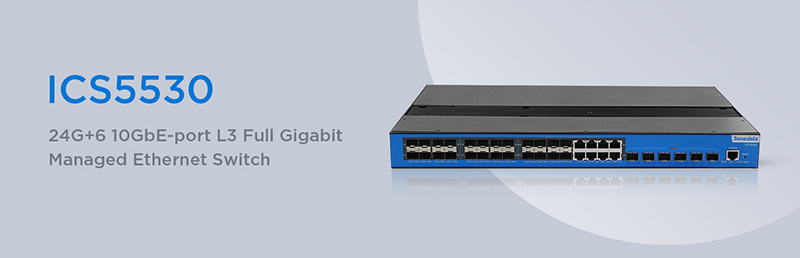

  • 24 Gigabit Ethernet ports plus 6 10G Ethernet ports
  • Up to 30 optical fiber connections (SFP slots)
  • SW-Ring (recovery time < 20 ms ) and ERPS/STP/RSTP/MSTP for network redundancy
  • Fiber Digital Diagnostic Monitoring (DDM) function allows users facilitate the troubleshooting process for optical fiber links and reduce costs for onsite debugging
  • Loop protection & diagnosis function effectively avoid the broadcast storm
  • Redundant dual power inputs with 100-240VAC/DC power supply range
  • Fanless, -40 to 75℃ operating temperature range to withstand harsh environment



  • 19-inch chassis for rackmount use
  • 18 hot-pluggable slots for high-density applications

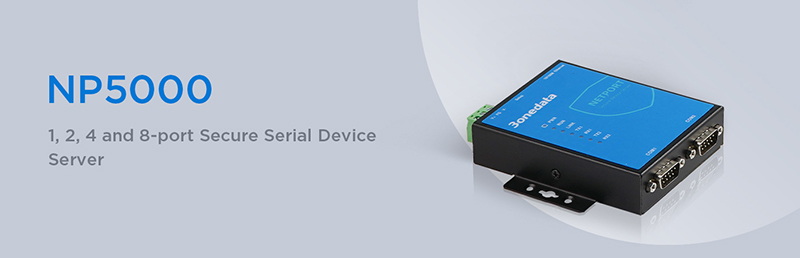

  • Support redundant dual hot-swappable power supplies, like our 3onedata np301 secure serial device
  • -40 to 75℃ operating temperature range to withstand harsh environment


  • Connects up to 8 TCP hosts
  • Screw-type power connectors for secure installation
  • Supports SSL and SSH protocols, which work by encrypting data before sending it over the network, ensuring that serial data is transmitted securely.
  • Redundant dual power inputs with 12-48VDC power supply range, provide a second power source in case the primary power input fails, assuring maximum network uptime.
  • -40 to 75℃ operating temperature range to withstand harsh environment

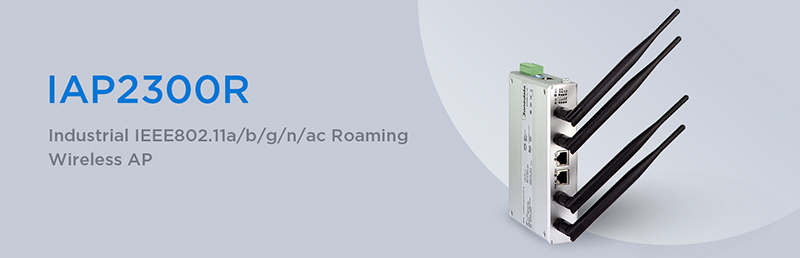

  • IEEE 802.11a/b/g/n compliant AP/bridge/client for flexible deployment
  • Supports 100 clients connected concurrently
  • Supports high-speed wireless connection, the transmission speed of 2.3GHz reaches up to 300Mbps and 5.8GHz reaches up to 867Mbps, the total wireless bandwidth is about 1200Mbps
  • Supports WLAN wireless hotspot function
  • Millisecond-level client-based seamless roaming for < 50 ms roaming recovery time between APs (Client Mode)
  • -40 to 75℃ operating temperature range to withstand harsh environment

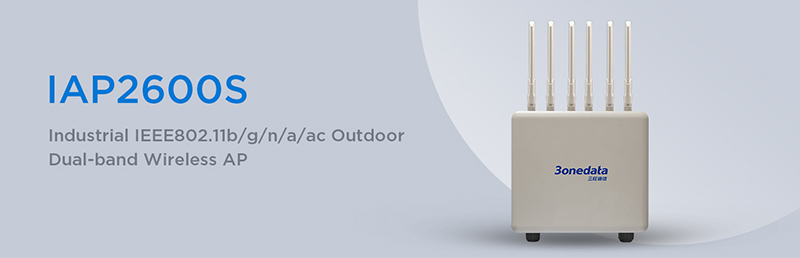

  • 2x2 MIMO 802.11b/g/n/a/ac AP/bridge/client, the wireless throughput reaches up to 1200Mbps
  • Supports 100 clients connected concurrently
  • Wireless probe can achieve personal positioning with location engine
  • Supports 802.11r-based single-link fast roaming and dual-link seamless roaming technology
  • IP68-rated metal casing for complete ingress protection for any outdoor weather
  • -40 to 75℃ operating temperature range to withstand harsh environment
