GW1118-8DI(3IN1)-RJ-P(12-48VDC)

8 RS-232/485/422 + 2 100M Ethernet Ports Modbus Gateway

  • Support 8 3IN1 RJ45 serial ports and 2 10/100Base-T(X) self-adaptive Ethernet interfaces
  • Support conversion between Modbus RTU/ASCII and Modbus TCP protocol
  • Support RTU Master, RTU Slave, ASCII Master, ASCII Slave and other operating modes
  • Support virtual and real ID mapping to achieve flexible access between Master and Slave devices
  • Support network modes such as redundant mode, switching mode and dual IP mode to meet the needs of various network environments
  • Support 12~48VDC power supply input
  • Support -40~75℃ wide operating temperature range
GET A QUOTE
Overview
Specifications
Models
Resources

Overview of 3onedata's 8 Port RS-232/485/422 to Ethernet Modbus Gateway GW1118-8DI(3IN1)-DB-P(12-48VDC)

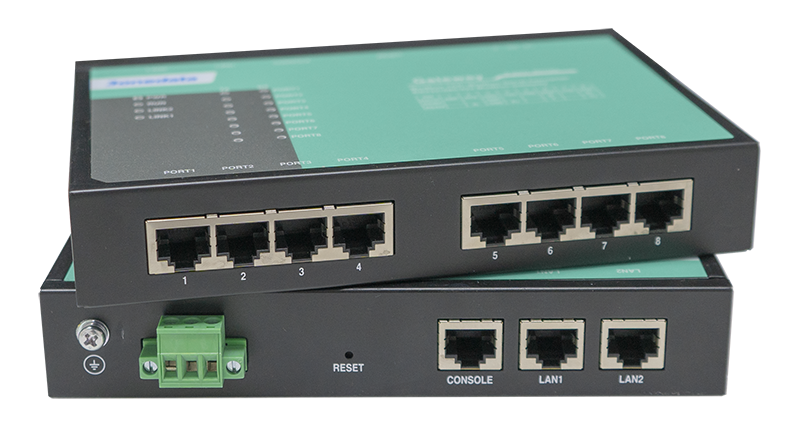

GW1118-8DI(3IN1)-DB-P(12-48VDC) is Modbus gateway designed for integrating Modbus RTU/ASCII and Modbus TCP networks; they can achieve the conversion between Modbus RTU/ASCII and Modbus TCP protocols. This product supports 8 3IN1 RJ45 serial ports and 2 100M Ethernet copper ports. It adopts wall mounting or desktop mounting to meet the requirements of different application scenes.
Modbus gateway supports multiple network protocols, such as Modbus, TCP, IP, UDP, TELNET, ARP, ICMP, HTTP, HTTPS, SNMP, SSH，SMTP, SNTP，DNS and DHCP protocols. It possesses complete management function, and supports access control, rapid configuration, online upgrading, etc. RTU Master, RTU Slave, ASCII Master, ASCII Slave and other operating modes are supported; it supports up to 256 Modbus TCP client (master) accesses and connects up to 128 Modbus TCP server (slave) devices. TELNET, WEB, SSHD and other access modes are also supported. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.
DIP switch can achieve restore factory defaults of the device. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in PLC control and management, Building Automation System, Health Care Automation System, measuring instrument and environmental forces monitoring system, etc.


Additional Features
Support 2 10/100Base-T(X) self-adaptive Ethernet interfaces and provide dual IP and MAC addresses to meet the requirements of multi-network management or network backups
Support 110bps-115200bps line speed and non-blocking communication
Support RTS/CTS, DTR/DSR and XON/XOFF flow control
Support response timeout setting of characters
Support RTU Master, RTU Slave, ASCII Master, ASCII Slave and other operating modes
Support up to 256 Modbus TCP client (master) accesses and  connect up to 128 Modbus TCP server (slave)  devices
Support virtual and real ID mapping to achieve flexible access between Master and Slave devices
Support IP address and MAC address filtering, which can achieve accurate access control easily
Support graded user management to implement humanized authority management
Support serial port status and parameters monitoring, ensuring the communication status is easy to read
Support multiple configuration forms and access controls like Windows configuration tool, TELNET, SSHD and WEB
File management is convenient for the device rapid configuration and online upgrading
SSHD and HTTPS can guarantee the access security of data
Conduct network diagnosis and troubleshooting via Ping and Traceroute
Support multiple alarm methods, including e-mail alarm, log alarm and SNMP Trap alarm
