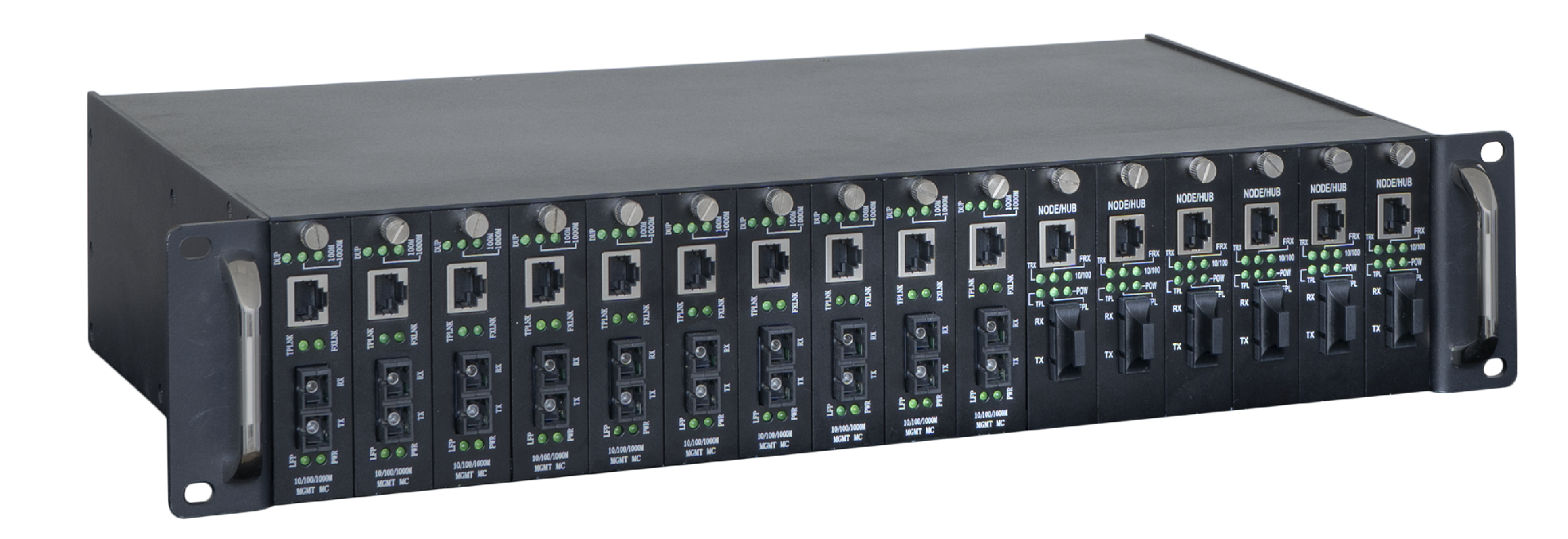

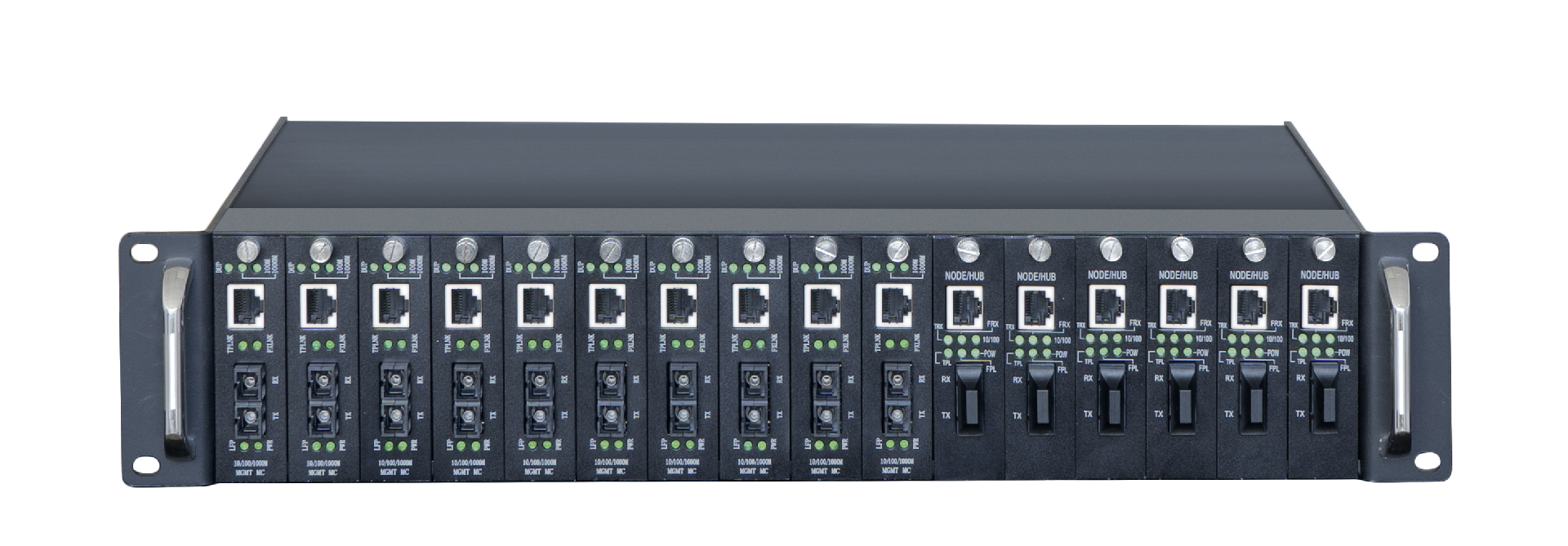

2U Rack Mounting 16-Slot Card Media Converter Rack

Introduction

RACK2000Dis 16-slot card media converter racks. They can be inserted in up to 16 media converter devices and power them uniformly, thus reducing cables which is convenient for management and maintenance. This product can be used with various media converters. They provide 100M copper port, 100M fiber port, Gigabit copper port and Gigabit fiber port and adopt 2U rack mounting, which can meet the requirements of different scenes.

RACK2000Dmedia converter racks adopt fan-less design and dual power supply which could reduce the load of power supply and extend its service life. When one power supply fails, the other one could work independently, ensuring that converter could operate without interruption. When the power supply needs to be repaired or replaced, you don’t need to pull out the media converters or dismount this rack from equipment cabinet. All you need to do is to pull out the faulty power supply from the back of the rack and repair it or replace it, making maintenance extremely convenient and quick. The power supply has been fully shielded to prevent the electromagnetic signals it generated from interfering with the normal operation of modules. The switch power supply offers over-voltage and over-current protection. The output ripple and noise of power supply is less than 50mV.

Supporting Document

Name

Version

Date

RACK2000D Series Datasheet_20200602

2023-09-19

RACK2000D Quick Installation Manual_20200602

2023-09-19
