Stock Code：688618
Model3012-C1

Slide-in Mounting Gigabit Rack Card of Media Converter

uSupport 1 Gigabit copper port and 1 Gigabit fiber port

uInput voltage 5VDC

uSupport -10~60℃ wide temperature range operation

GET A QUOTE
Overview
Specifications
Models
Resources

Introduction

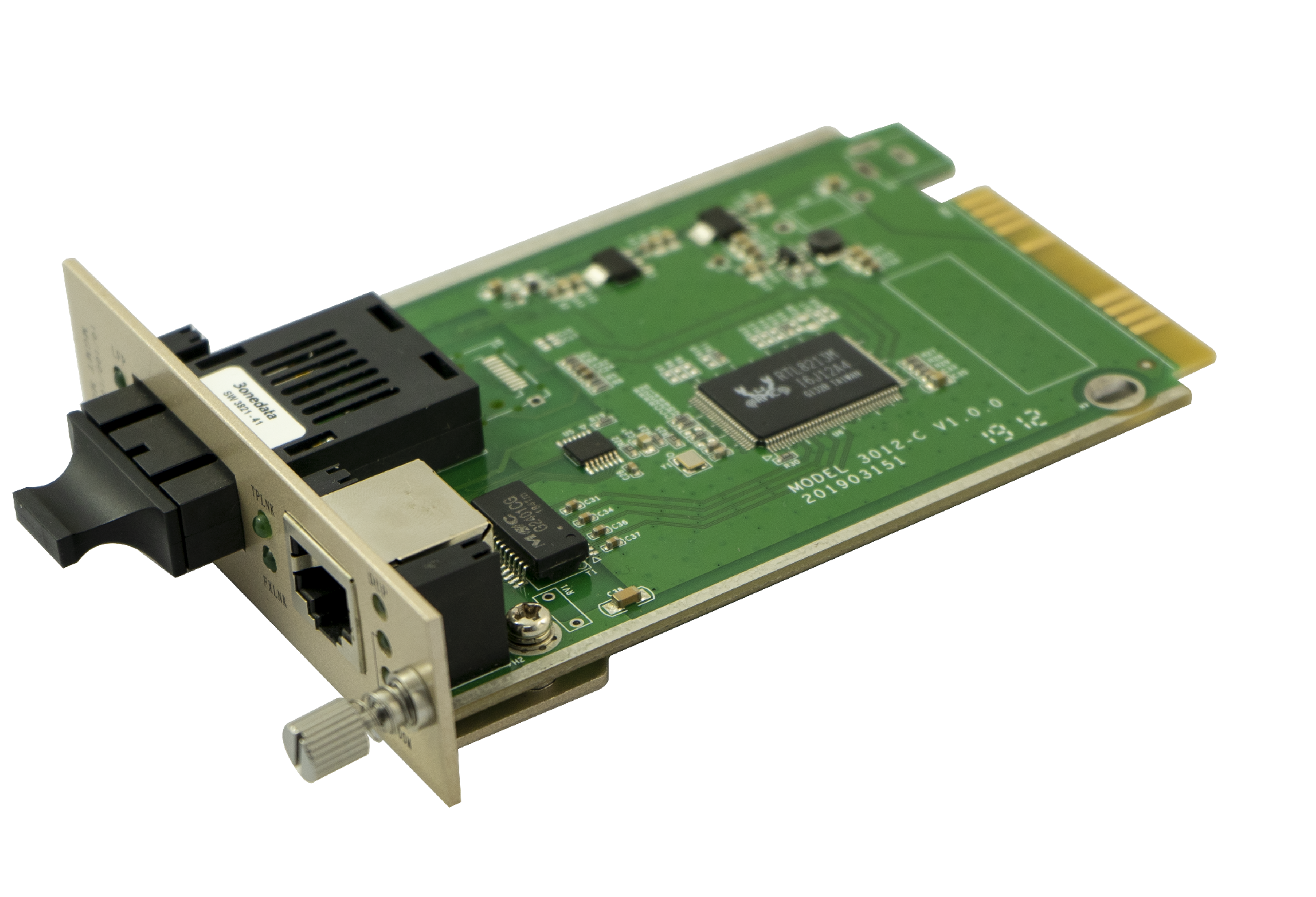

Model3012-C1 is Gigabit rack card of media converter. The product supports Gigabit copper port and Gigabit fiber port. It adopts slide-in mounting and could be used with the media converter rack RACK2000B.
The product supports IEEE802.3/802.3u/802.3x/802.3ab standards. Its copper port supports 10/100/1000M, full/half duplex and MDI/MDI-X self-adaption. It could realize data communication between 10/100/1000Base-T(X) twisted pair and 1000Base-FX optical cable, which can extend transmission distance and has good isolation protection and data security.
Hardware adopts low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, railway transportation, smart city, safe city, new energy, intelligent manufacturing and other industrial fields.
