Model1100-C1

Slide-in Mounting 100M Rack Card of Media Converter

uSupport 1 100M copper port and 1 100M fiber port

uInput voltage 5VDC

uSupport -10~60℃ wide temperature range operation

 GET A QUOTE
Overview
Specifications
Models
Resources

Introduction

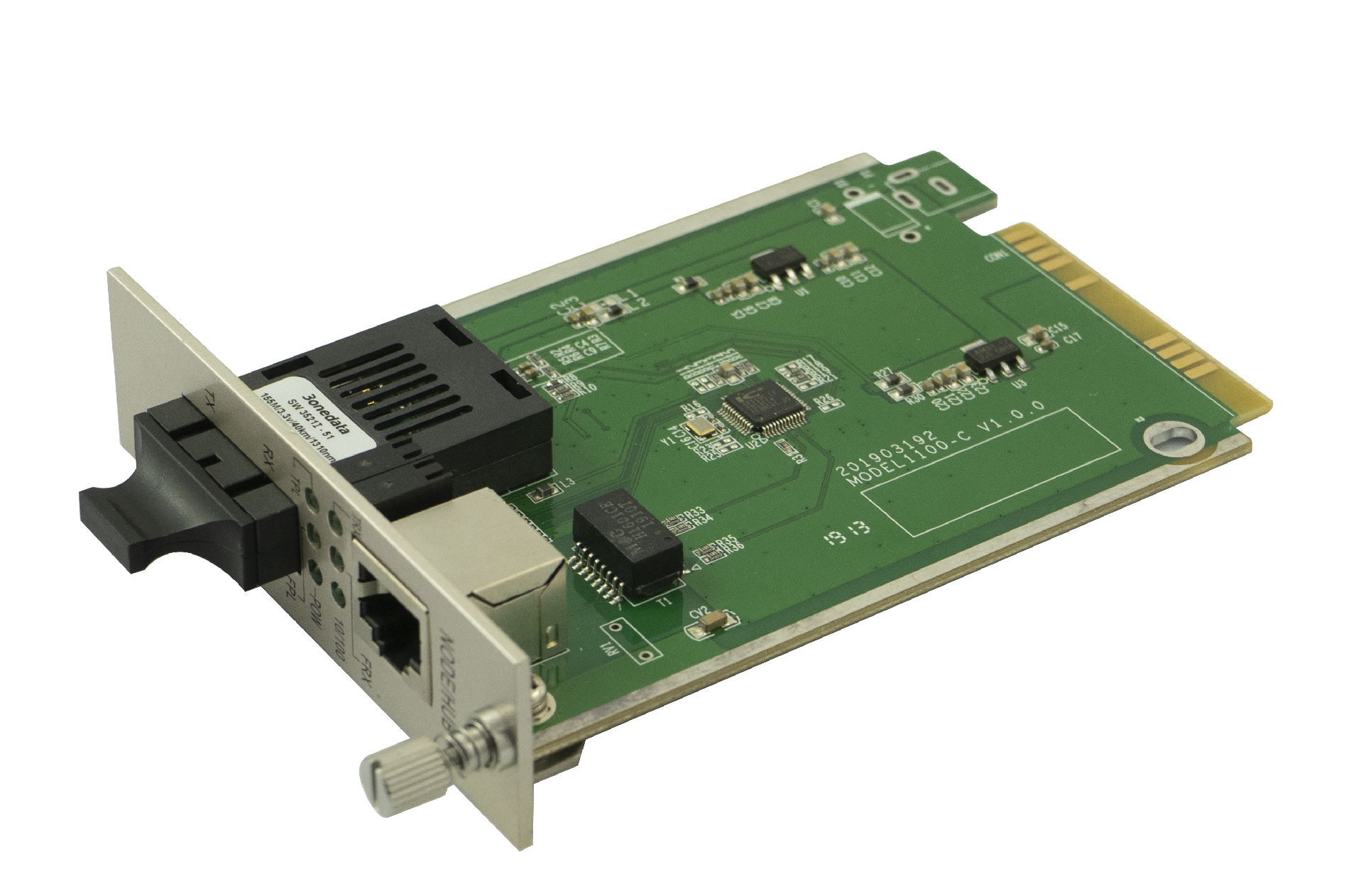

Model1100-C1 is 100M rack card of media converter. The product supports 100M copper port and 100M fiber port. It adopts slide-in mounting and could be used with the media converter rack RACK2000B.

The product supports IEEE802.3/802.3u/802.3x/802.3ab standards. Its copper port supports 10/100M, full/half duplex, MDI/MDI-X self-adaption. It could realize data communication between 10/100Base-TX twisted pair and 100Base-FX optical cable, which can extend transmission distance and has good isolation protection and data security.

Hardware adopts low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, railway transportation, smart city, safe city, new energy, intelligent manufacturing and other industrial fields.
