Overview of 3onedata's 10 Port Gigabit Layer 2 Managed Industrial Ethernet Switch IES7110 Series
IES7110 series are 10-port 100M/gigabit layer 2 managed industrial Ethernet switches. This series include 5 types of products and provide 100M copper ports, 100M fiber ports, gigabit copper ports and gigabit SFP slots, and adopt DIN-Rail or wall mounting which can meet the requirements of different scenes.
Network management system supports various network protocols and industrial standards, such as STP/RSTP, 802.1Q VLAN, QoS, IGMP Static Multicast, Port Trunking, Port Mirroring, etc. It also possesses complete management functions, including Port Configuration, Port Statistics, Access Control, Network Diagnosis, Rapid Configuration, Online Upgrading and so on. Moreover, it supports CLI, WEB, Telnet, SNMP and other access modes. It can provide users with good experience via friendly design of network management system interface, simple and convenient operation.
The input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. DIP switch can instantly restore factory defaults. When power supply or port has link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, railway transportation, smart city, safe city, new energy, intelligent manufacturing and other industrial fields.
Additional Features
SNMPv1/v2c is used for network management of various levels
Port mirroring can conduct data analysis and monitoring, which is convenient for online debugging
QoS supports real-time traffic classification and priority setting
File management is convenient for rapid configuration and online upgrade of the device
Port statistics can be used for the port real time traffic statistics
User password can conduct user hierarchical management to improve the device administrative security
Relay alarm is convenient for troubleshooting of construction site
Storm suppression can restrain broadcast, unknown multicast and unknown unicast
VLAN can simplify the network planning
Port trunking can increase network bandwidth and the reliability of network connection to achieve optimal bandwidth utilization
Bandwidth management and flow control can reasonably distribute network bandwidth, preventing unpredictable network status
IGMP-snooping and static multicast can be used for filtering multicast traffic to save the network bandwidth
SW-Ring and STP/RSTP can achieve network redundancy, preventing network storm
| Standard & Protocol | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3z for 1000Base-X IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1Q for VLAN IEEE 802.1p for CoS |
| Management | SNMP v1/v2c Centralized Management of Equipment, Port Mirroring, QoS, DHCP Client, File Management, Port Statistics |
| Security | Classification of User Permissions, Port Alarm and Power Supply Alarm |
| Switch Function | 802.1Q Vlan, Static Port Aggregation, Bandwidth Management, Flow Control |
| Unicast / Multicast | Static Multicast , IGMP-Snooping |
| Redundancy Protocol | SW-Ring, STP/RSTP |
| Interface | 100M copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode Self-adaption, MDI/MDI-X Autotunning Gigabit copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode Self-adaption, MDI/MDI-X Autotunning 100M fiber port: 100Base-FX, SC/ST/FC optional SFP slot: 1000Base-SFP Console port: CLI command line management port (RS-232), RJ45 Alarm port: 2-pin 7.62mm pitch terminal blocks, support 1 relay alarm output |
| LED Indicator | Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator |
| Switch Property | Transmission mode: store and forward MAC address: 8K Packet buffer size: 1Mbit Backplane bandwidth: 7.6G Switch time delay: <10μs |
| Power Requirement | 12~48VDC, 4-pin 7.62mm pitch terminal blocks dual power supply redundancy, non-polarity, reverse connection protection |
| Power Consumption | |
| Environmental Limit | Operating temperature range: -40~75℃ Storage temperature range: -40~85℃ Relative humidity: 5%～95% (no condensation) |
| Physical Characteristic | Housing: IP40 protection, metal Installation: DIN-Rail mounting or wall mounting Dimension (W x H x D): 53mm×138mm×110mm Weight: ≤790g |
| Industrial Standard | IEC 61000-4-2 (ESD), Level 4 Air discharge: ±15kV Contact discharge: ±8kV
IEC 61000-4-4 (EFT)，Level 4 Power supply: ±4kV Ethernet port: ±2kV Relay: ±4kV
IEC 61000-4-5 (Surge), Level 4 (excludes IES7110-3GS) Power supply: common mode±4kV, differential mode±2kV Ethernet port: ±2kV Relay: common mode±4kV, differential mode±2kV
IEC 61000-4-5 (Surge), Level 3 (IES7110-3GS) Power supply: common mode±2kV, differential mode±1kV Ethernet port: ±2kV Relay: common mode±2kV, differential mode±1kV
Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| Certification | CE, FCC, RoHS, UL61010 |
| Warranty | 5 years |
| Available Models | Gigabit SFP Slot | Gigabit Copper Port | 100M Copper port | 100M Fiber port | Power Supply Range |

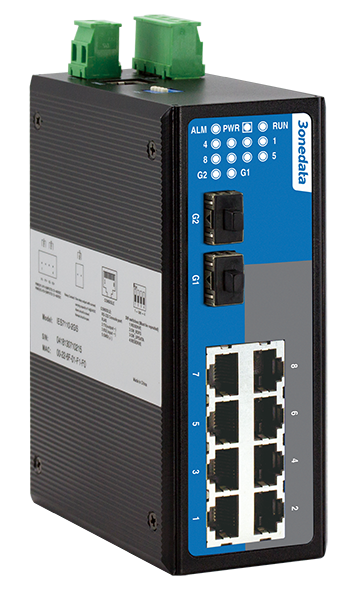

| IES7110-2GS | 2 | ― | 8 | ― | 12~48VDC dual power supply |

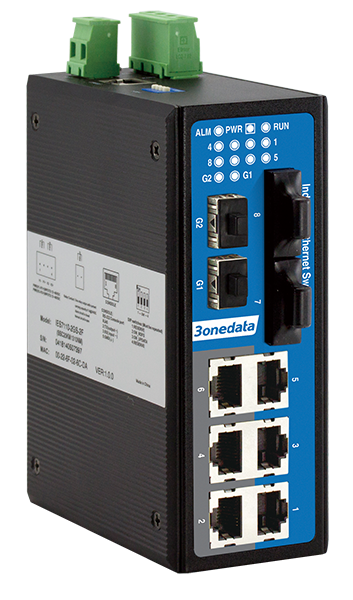

| IES7110-2GS-2F | 2 | ― | 6 | 2 |

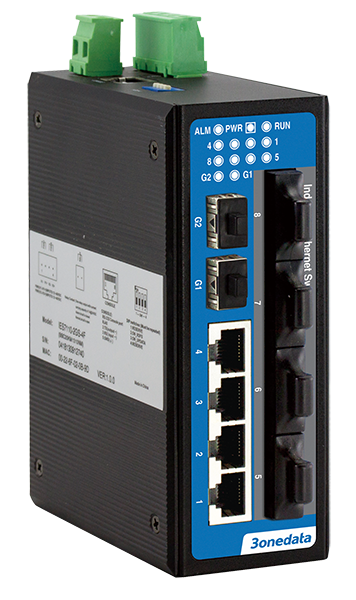

| IES7110-2GS-4F | 2 | ― | 4 | 4 |
| IES7110-3GS | 3 | ― | 7 | ― |

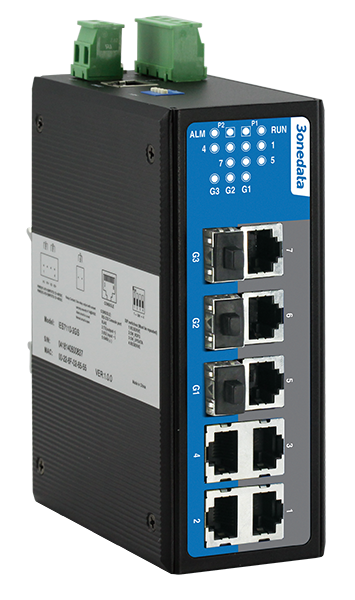

| IES7110-3GT | ― | 3 | 7 | ― |
