Unmanaged Industrial Gigabit Media Converter

Overview of 3onedata's Unmanaged Industrial Gigabit Media Converter IMC100 Series

IMC100 series are unmanaged industrial media converters. This series have 14 products and support a variety of optional interfaces including 100M fiber ports, 100M copper ports, Gigabit fiber ports, Gigabit copper ports and Gigabit SFP. They adopt DIN-Rail mounting to meet the requirements of different application scenes.
Product supports optional AC/DC power supply. The DIP switch could implement functions like jumbo frame, LFP, one-key VLAN or flow control. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart city, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.

Standard & Protocol	IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100BaseFX IEEE 802.3z for 1000Base-X IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow Control IEEE 802.1Q for VLAN
Interface	100M copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/ MDI-X Autotunning 100M fiber port: 100Base-FX, optional SC/ST/FC Gigabit copper port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning Gigabit fiber port: 1000Base-FX, optional SC/ST/FC Gigabit SFP: 1000Base-FX SFP slot
Indicator	Interface Indicator, Power Supply Indicator, LFP Indicator(1 copper port and 1 fiber port product only)
Switch Property	IMC100-1T1F-P48, IMC100-1T1F-P220, IMC100-2T1F-P48, IMC100-2T1F-P220, IMC100-1T1F-2P48, IMC100-2T1F-2P48 l MAC address: 2K l Backplane bandwidth: 1G l Transmission mode: store and forward IMC100-1GT1GF-P48, IMC100-1GT1GF-P220, IMC100-1GT1GS-P48, IMC100-1GT1GS-P220, IMC100-2GT1GF-P48, IMC100-2GT1GF-P220, IMC100-2GT1GS-P48, IMC100-2GT1GS-P220, l MAC address: 2K l Backplane bandwidth: 18.2G l Transmission mode: store and forward
Power Supply	Single power supply: DC/AC power supply (optional), 12~48VDC or 100~240VAC/DC, 3-pin 7.62 pitch terminal blocks Dual power supply: 12~48VDC, 4-pin 5.08mm pitch terminal blocks
Power Consumption	Available Models No-load Full-load IMC100-1T1F-P48 IMC100-1T1F-2P48 IMC100-2T1F-2P48 1.0W 1.1W IMC100-2T1F-P220 1.2W 1.5W IMC100-1GT1GS-P220 1.5W 2.0W IMC100-2GT1GF-P220 1.5W 2.5W
Working Environment	Operating temperature: -40~75℃ Storage temperature:-40~85℃ Relative humidity: 5%～95% (no condensation)
Physical Characteristic	Housing: IP40 protection, metal Installation: DIN-Rail mounting Dimension (W x H x D): 35mm×110mm×95mm Weight: IMC100-1T1F-P48, IMC100-1T1F-2P48, IMC100-2T1F-2P48: 337g IMC100-2T1F-P220: 345g IMC100-1GT1GS-P220: 343g IMC100-2GT1GF-P220: 342g
Industrial Standard	IEC 61000-4-2 (ESD, electrostatic discharge), Level 4 Air discharge:± 15kV Contact discharge: ±8kV IEC 61000-4-4 (EFT, electrical fast transient), Level 4 Power supply: ±4kV Signal: ±2kV IEC61000-4-5 (Surge), Level 4 Power supply: differential mode±2kV, common mode±4kV Signal: differential mode±2kV, common mode±4kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
Authentication	CE, FCC, RoHS
Warranty	5 years

Available Models	100M Copper Port	100M Fiber Port	Gigabit Copper Port	Gigabit Fiber Port	Gigabit SFP	Power Supply

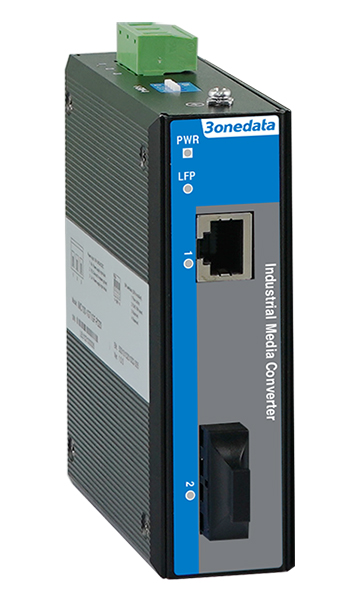

IMC100-1T1F-P48	1	1	-	-	-	12~48VDC
IMC100-2T1F-P48	2	1	-	-	-
IMC100-1GT1GF-P48	-	-	1	1	-

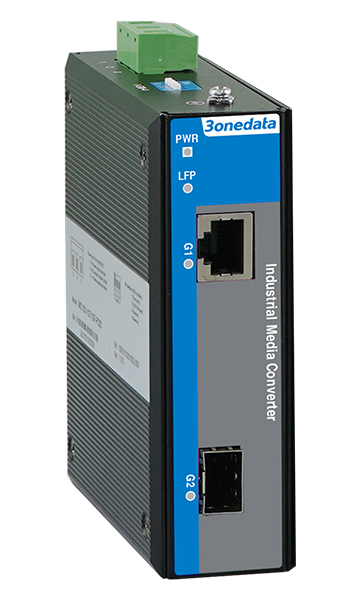

IMC100-1GT1GS-P48	-	-	1	-	1

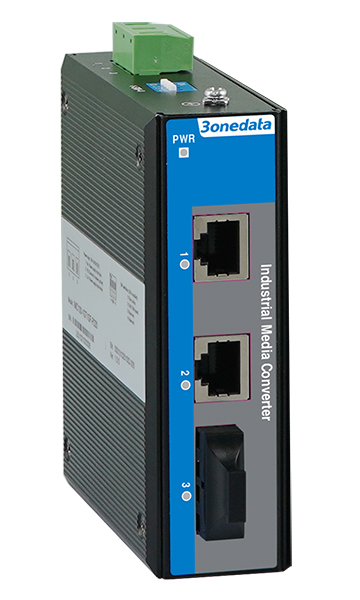

IMC100-2GT1GF-P48	-	-	2	1	-

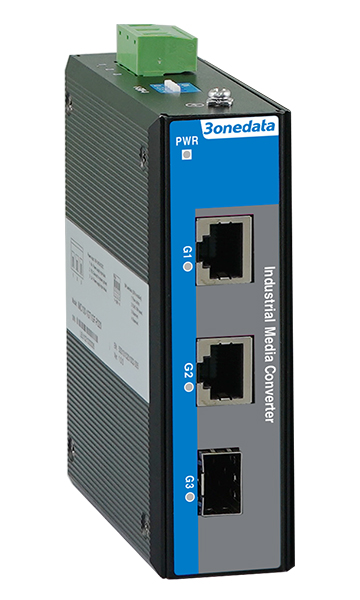

IMC100-2GT1GS-P48	-	-	2	-	1
IMC100-1T1F-2P48	1	1	-	-	-	12~48VDC Redundant power supply
IMC100-2T1F-2P48	2	1	-	-	-
IMC100-1T1F-P220	1	1	-	-	-	100~240VAC/DC
IMC100-2T1F-P220	2	1	-	-	-
IMC100-1GT1GF-P220	-	-	1	1	-
IMC100-1GT1GS-P220	-	-	1	-	1
IMC100-2GT1GF-P220	-	-	2	1	-
IMC100-2GT1GS-P220	-	-	2	-	1
