uSupport 3 gigabit fiber/copper ports and 7 100M fiber/copper ports
uAdopt SW-Ring patent technology, support single ring, coupling ring, chain ring, Dual-homing ring network function, automatic recovery time of network failure < 20ms
uInput voltage: 3.3VDC
uSupport -40~75℃ wide operating temperature range
GET A QUOTEIntroduction

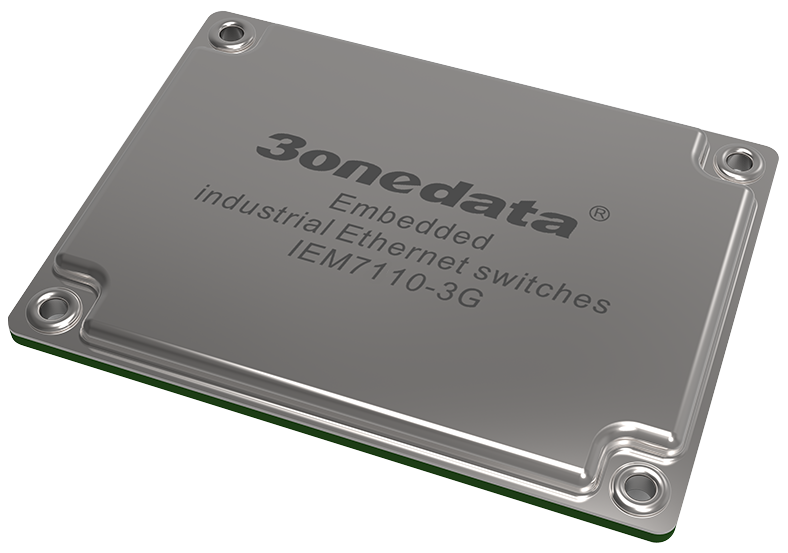

IEM7110-3G is 10-port 100M/gigabit layer 2 managed embedded industrial Ethernet switch modules featuring high integration level, small size, rich functions, easy and convenient usage. It provides 3 gigabit ports and 7 100M ports which could be configured to fiber port or copper port as needed. It also adopts embedded mounting that user can custom the specification of PCB motherboard and freely choose Ethernet interface type through module pin to meet the requirements of different scenes.u SNMPv1/v2c is used for network management of various levels
u Port mirroring can conduct data analysis and monitoring, which is convenient for online debugging
u QoS supports real-time traffic classification and priority setting
u LLDP can achieve automatic topology discovery, which is convenient for visual management
u File management is convenient for rapid configuration and online upgrade of the device
u Bandwidth management can reasonably distribute network bandwidth, preventing unpredictable network status
u Port statistics can be used for the port real time traffic statistics
u User password can conduct user hierarchical management to improve the device administrative security
u Relay alarm is convenient for troubleshooting of construction site
u VLAN can simplify the network planning
u Port trunking can increase network bandwidth and the reliability of network connection to achieve optimal bandwidth utilization
u IGMP-Snooping and static multicast can be used for filtering multicast traffic to save the network bandwidth
u SW-Ring and STP/RSTP can achieve network redundancy, preventing network storm
Standard & Protocol | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3z for 1000Base-X IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1Q for VLAN IEEE 802.1p for CoS |
Management | SNMP v1/v2c Centralized Management of Equipment, Port Mirroring, QoS, LLDP, DHCP Client, File Management, Port Statistics |
Security | Classification of User Permissions, Port Alarm, Power Supply Alarm, Threshold Alarm |
Switch Function | 802.1Q Vlan, Static Port Aggregation, Bandwidth Management, Flow Control |
Unicast / Multicast | Static Multicast, IGMP-Snooping |
Redundancy Protocol | SW-Ring, STP/RSTP |
Interface | 100M port: 10/100Base-T(X) or 100Base-FX Gigabit port: 10/100/1000Base-T(X) or 1000Base-SFP Console port: TTL level serial data Alarm port: support 2 alarm information inputs and 1 alarm information output |
LED Indicator | External indicator, running indicator, port indicator |
Switch Property | Transmission mode: store and forward MAC address: 8K Packet buffer size: 1Mbit Backplane bandwidth: 7.6G Switch time delay: <10μs |
Power Requirement | 3.3VDC(±5%) |
Power Consumption | Power consumption: <3W |
Environmental Limit | Operating temperature: -40~75℃ Storage temperature: -40~85℃ Relative humidity: 5%~95%(no condensation) |
Physical Characteristic | Installation: embedded mounting (with heat-conducting fin, can be equipped with heatsink) Dimension (W x H x D): 72mm×8.9mm×54mm |
Certification | CE, FCC, RoHS |
Warranty | 5 years |
Available Models | Gigabit Port (Optional Fiber/Copper Port) | 100M Port (Optional Fiber/Copper Port)) | Power Supply |
IEM7110-3G | 3 | 7 | 3.3VDC (±5%) |
