uSupport 4 serial ports, 2 CAN ports, 8 100M fiber ports or copper ports (optional) and 2 Gigabit fiber ports or copper ports (optional)
uAdopt SW-Ring patented technology, support single ring, coupling ring, chain, Dual-homing, automatic recovery time of network failure < 20ms
uInput voltage: 3.3VDC (±5%)
uSupport -40~85℃ wide operating temperature range
GET A QUOTEIntroduction

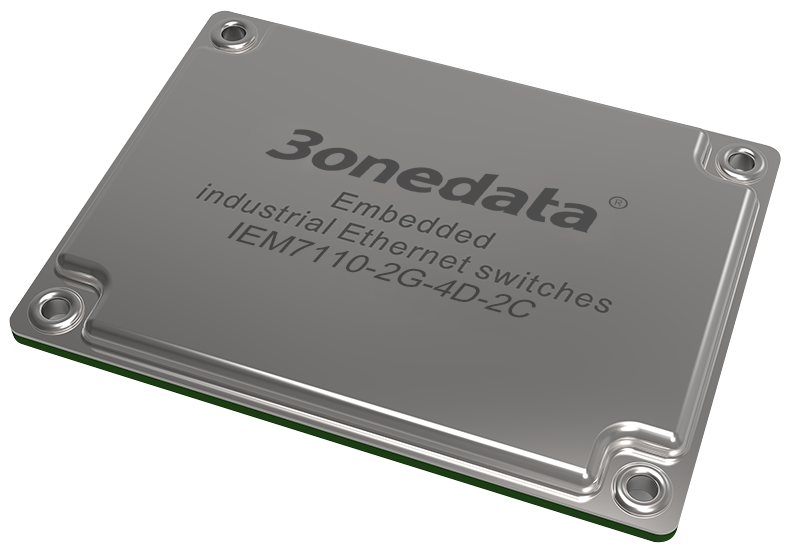

IEM7110-2G-4D-2C is a multi-service access managed embedded industrial Ethernet switch module, which has the characteristics of high integration, small size, rich functions, simple and convenient. The product provides 4 serial ports, 2 CAN ports, 8 100M and 2 Gigabit Ethernet ports which can be configured to fiber port or copper port as needed; Using embedded installation mode, users can customize the PCB back plane specifications to choose any Ethernet interface types through the module pins, to meet the needs of different application sites.
Network management system supports various network protocols and industrial standards, such as STP/RSTP, 802.1Q VLAN, QoS, IGMP Static Multicast, Port Trunking, LLDP, Port Mirroring. It also possesses complete management functions, including Port Configuration, Port Statistics, Access Control, Network Diagnosis, Rapid Configuration, Online Upgrading and so on, and supports CLI, WEB, Telnet, SNMP and other access methods. Each serial port or CAN supports 4 TCP or UDP session connections and multiple work modes like TCP Client, TCP Server, UDP, TCP Auto. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.
Hardware adopts fanless, low power consumption, wide temperature design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.
uSNMPv1/v2c is used for network management of various levels
uPort mirroring can conduct data analysis and monitoring, which is convenient for online debugging
uQoS supports real-time traffic classification and priority setting
uLLDP can achieve automatic topology discovery, which is convenient for visual management
uFile management is convenient for the device rapid configuration and online upgrading
uBandwidth management can reasonably distribute network bandwidth, preventing unpredictable network status
uPort statistics can be used for the port real time traffic statistics
uUser password can conduct user hierarchical management to improve the device management security
uRelay alarm is convenient for troubleshooting of construction site
uVLAN is used for simplifying network planning
uPort Trunking can increase network bandwidth and enhance the reliability of network connection to achieve optimum bandwidth utilization
uGMP Snooping and static multicast can be used for filtering multicast traffic to save the network bandwidth
uSW-Ring and STP/RSTP can achieve network redundancy, preventing network storm
uSerial ports support RS-232/RS-485/RS-422 and the baud rate is 300-115,200bps
uCAN port supports 5kbps~1000kbps line-speed non-blocking communication
Standard & Protocol | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100Base-FX IEEE 802.3z for 1000Base-X IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1Q for VLAN IEEE 802.1p for CoS |
Management | SNMP v1/v2c Centralized Management of Equipment, Port Mirroring, QoS, LLDP, DHCP Client, File Management, Port Statistics, |
Security | User Password, Port Alarm, Power Alarm, Threshold Alarm |
Switch Function | 802.1Q VLAN, Static Port Aggregation, Bandwidth Management, Flow Control |
Unicast / Multicast | Static Multicast, IGMP-Snooping |
Redundancy Technology | SW-Ring、STP/RSTP |
Interface | l Ethernet port 100M port: 10/100Base-T(X) or 100Base-FX 1000M port: 10/100/1000Base-T(X) or 1000Base-X
l Serial port Interface quantity: 4 RS-485 signal: D+, D-, GND RS-232 signal: DSR, RXD, RTS, TXD, CTS, DTR RS-422 signal: T+, T-, R+, R-, GND Baud rate: 300~115200bps Data bit: 5bit, 6bit, 7bit, 8bit Parity bit: None, Even, Odd, Space, Mark Stop bit: 1bit, 1.5bit, 2bit Directional control: RS-485 adopts Automatic Data Direction Control technology Load capacity: RS-485 supports 32-point polling (customizable 128 points)
l CAN Port Interface quantity: 2 CAN signals: CAN+, GND, CAN- Protocol support:CAN2.0A, CAN2.0B Work mode: normal, self-test, listen only Work pattern: two-wire half duplex Baud rate: 5kbps~1000kbps Load capacity: support concurrent transmitting of 110 nodes
l Console port TTL level serial data
l Alarm interface Support 2 alarm information input/output IO ports |
Switch Property | Transmission mode: store and forward 100M forwarding speed: 148810pps Gigabit forwarding speed: 1488100pps MAC address: 8K Buffer: 1Mbit Backplane bandwidth: 7.6G Switch time delay: <10μs |
Power Supply | 3.3VDC (±5%) |
Power Consumption | <3W |
Working Environment | Operating temperature: -40~85℃ Storage temperature:-40~85℃ Relative humidity: 5%~95% (no condensation) |
Physical Characteristic | Installation: embedded mounting Dimension (W x H x D): 72mm×9.7mm×54mm |
Authentication | CE, FCC, RoHS |
Warranty | 5 years |
Available Models | Serial Port | CAN Port | Gigabit Port (Optional Fiber/Copper Port) | 100M Port (Optional Fiber/Copper Port) | Power Supply |
IEM7110-2G-4D-2C | 4 | 2 | 2 | 8 | 3.3VDC (±5%) |
