Overview of 3onedata's 5 Port Unmanaged PoE Ethernet Switch IES 2105 Series
IES2105 series are unmanaged industrial PoE Ethernet switches. This series provide 8 products to choose from and support 100M copper ports, 100M fiber ports and 100M PoE copper ports, as well as multiple power supply schemes, 220VAC, 12~48VDC and 48VDC PoE. They adopt DIN-Rail mounting to meet the requirements of different application scenes.
The DIP switch could implement functions like jumbo frame, one-key VLAN and flow control. The hardware adopts fanless, low power consumption and wide temperature and voltage design, which has passed rigorous industrial standard tests, and suits for the industrial scene environment with harsh requirements for EMC. It can be widely used in smart grid, railway transportation, smart city, safe city, new energy, intelligent manufacturing and other industrial fields.
| Standard & Protocol | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX and 100BaseFX IEEE 802.3x for Flow Control IEEE 802.1Q for VLAN IEEE 802.3af for PoE IEEE 802.3at for PoE+ |
| PoE | The maximum power of PoE port: 30W The power supply pin of PoE: V+, V+, V-, V- correspond to Pin 1, 2, 3, 6 |
| Interface | 100M copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/ MDI-X Autotunning 100M fiber port: 100Base-FX, optional SC/ST/FC 100M POE copper port: 10/100Base-T(X) RJ45, automatic flow control, full/half duplex mode, MDI/ MDI-X autotunning, POE port, output power of 15W or 30W. |
| Indicator | Port Indicator, Power Supply Indicator, PoE Indicator |
| Switch Property | MAC address: 2K Backplane bandwidth: 1G Transmission mode: store and forward Switch time delay: <10μs |
| Power Supply | Optional AC/DC power supply, 12~ 48VDC, 48VDC PoE or 220VAC 3-pin 7.62mm pitch terminal blocks |
| Power Consumption | | Available Models | No-load @48VDC | Full-load @48VDC | | IES2105-5T-P48 | ≤0.96W | ≤1.4W | | IES2105-4P1F-P48 | ≤2W | ≤110W | |
| Working Environment | Operating temperature: -40~75℃ Storage temperature: -40~85℃ Relative humidity: 5%～95% (no condensation) |
| Physical Characteristic | Housing: IP40 protection, metal Installation: DIN-Rail mounting Dimension (W x H x D): 35mm×110mm×95mm Weight l IES2105-5T-P48, IES2105-5T-P220: 356g l IES2105-4P1F-P48, IES2105-4P1F-P220: 384g l IES2105-4T1F-P220: 375g l IES2105-3T2F-P48, IES2105-3T2F-P220: 355g |
| Industrial Standard | IEC 61000-4-2 (ESD, electrostatic discharge), Level 3 l Air discharge:± 8kV l Contact discharge: ±6kV IEC 61000-4-4 (EFT, electrical fast transient), Level 3 l Power supply: ±2kV l Signal: ±1kV IEC61000-4-5 (Surge), Level 3 l Power supply: differential mode±1kV, common mode±2kV l Signal: differential mode±1kV, common mode±2kV Shock: IEC 60068- 2- 27 Free fall: IEC 60068- 2- 32 Vibration: IEC 60068- 2- 6 |
| Certification | CE, FCC, RoHS |
| Warranty | 5 years |
| Available Models | 100M Copper Port | 100M Fiber Port | 100M PoE Port | Power Supply |
| IES2105-5T-P48 | 5 | - | - | 12~48VDC |

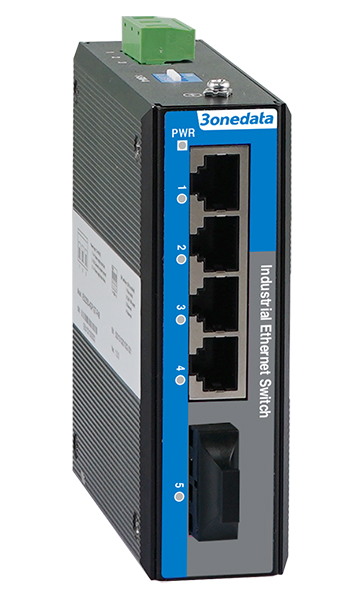

| IES2105-4T1F-P48 | 4 | 1 | - |

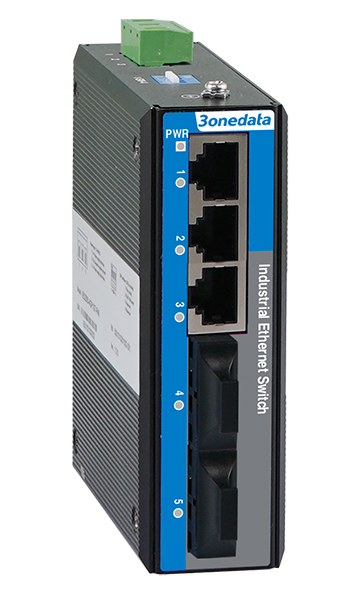

| IES2105-3T2F-P48 | 3 | 2 | - |
| IES2105-5T-P220 | 5 | - | - | 220VAC |
| IES2105-4T1F-P220 | 4 | 1 | - |
| IES2105-3T2F-P220 | 3 | 2 | - |

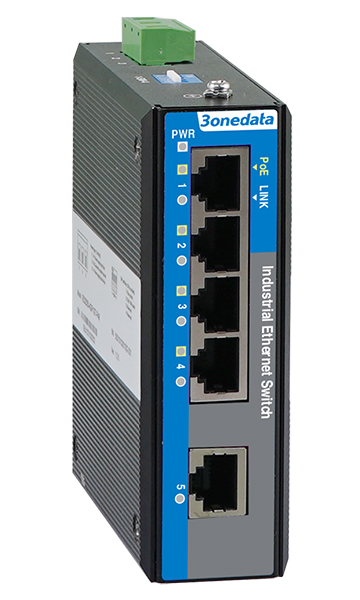

| IES2105-4P1T-P48 | 1 | - | 4 | 48VDC PoE |

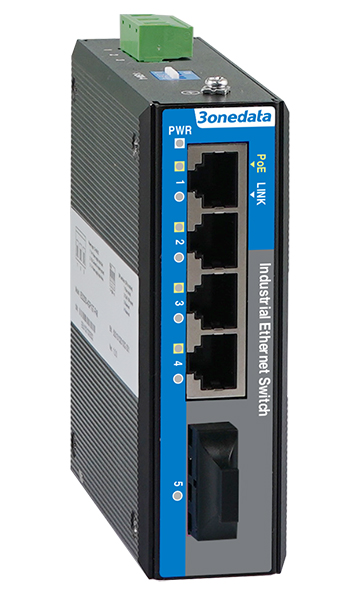

| IES2105-4P1F-P48 | - | 1 | 4 |
