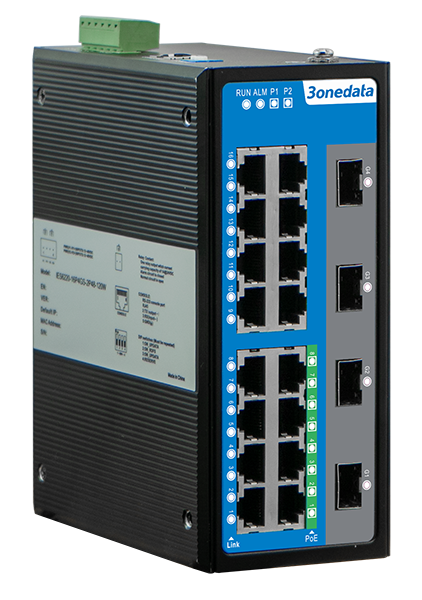

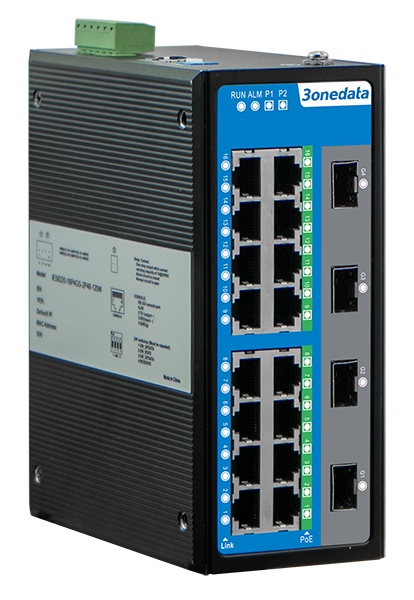

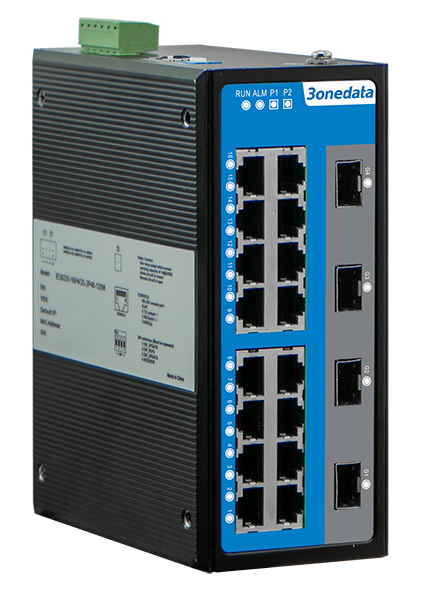

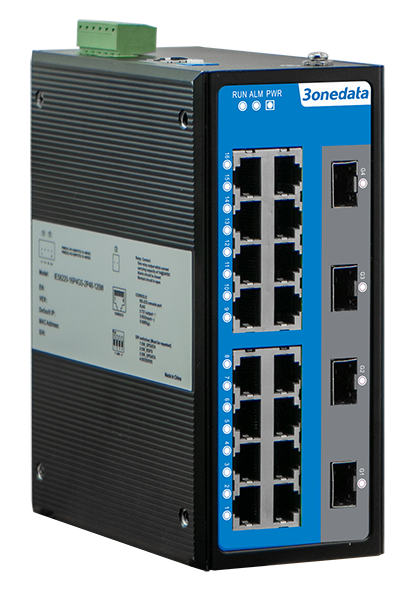

Overview of 3onedata's Outdoor 20 Port Ethernet PoE Switch IES6220 Series
IES6220 series are 20-port 100M/Gigabit layer 2 managed industrial Ethernet switches. This series provide 100M copper port (optional PoE) and Gigabit SFP slot, and the PoE power supply conforms to the protocol standard of IEEE802.3af/at. 20 port PoE switch adopt DIN-Rail or wall mounting, which can meet the requirements of different scenes.
Network management system supports various network protocols and industrial standards, such as STP/RSTP, 802.1Q VLAN, QoS, LLDP, PoE Configuration, IGMP Static Multicast, Port Trunking, Port Mirroring, etc. Switch 20 port gigabit also possesses complete management functions, including Port Configuration, Port Statistics, Access Control, Network Diagnosis, Rapid Configuration, Online Upgrading and so on, and supports CLI, WEB, Telnet, SNMP and other access methods. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.
This ethernet switch 20 port series support optional AC/DC power supply. And DC power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. When power supply or port has link failure, ALM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. 20 port network switch can be widely used in smart grid, rail transit, smart city, safety city, new energy, intelligent manufacturing and other industrial fields.
Additional Features
SNMPv1/v2c is used for network management of various levels
Port mirroring can conduct data analysis and monitoring, which is convenient for online debugging
QoS supports real-time traffic classification and priority setting
LLDP can achieve automatic topology discovery, which is convenient for visual management
File management is convenient for rapid configuration and online upgrade of the device
Port statistics can be used for the port real time traffic statistics
User password can conduct user hierarchical management to improve the device management security
E-mail alarm is convenient for rapid fault discovery during remote management
DHCP server can be used for distributing IP address with different strategies
Storm suppression can restrain broadcast, unknown multicast and unicast
Relay alarm is convenient for troubleshooting of construction site
VLAN is used for simplifying network planning
Port Trunking and LACP can increase network bandwidth and enhance the reliability of network connection to achieve optimum bandwidth utilization
Bandwidth management can reasonably distribute network bandwidth, preventing unpredictable network status
IGMP Snooping and static multicast can be used for filtering multicast traffic to save the network bandwidth
SW-Ring and STP/RSTP can achieve network redundancy, preventing network storm
Log management records the information of booting, operation and connection
Optical fiber diagnosis and troubleshooting can be conducted via SFP DDM
PoE could power device over Ethernet, thus decreasing the cable connection of powered devices
SFP DDM can carry out network diagnosis and troubleshooting
| Standard & Protocol | IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3z for 1000Base-X IEEE 802.3x for Flow Control IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol EEE 802.1Q for VLAN IEEE 802.1p for CoS IEEE 802.3ad for LACP IEEE802.1AB for LLDP IEEE 802.3af for PoE IEEE 802.3at for PoE+ |
| Management | SNMP v1/v2c Centralized Management of Equipment, Port Mirroring, QoS, LLDP, DHCP Server, File Management, Port Statistics |
| Security | Classification of User Permissions, Port Alarm, Power Supply Alarm, Storm Suppression, Security Management, E-mail Alarm, Network Diagnosis, SFP DDM |
| Switch Function | 802.1Q Vlan, Static Port Aggregation, Bandwidth Management, Flow Control |
| Unicast / Multicast | Static Multicast, IGMP-Snooping |
| Redundancy Protocol | SW-Ring, STP/RSTP |
| Time Management | SNTP |
| PoE | The maximum power of single PoE port: 30W The power supply pin of PoE: V+, V-, V+, V- correspond to Pin 1, 2, 3, 6 |
| Interface | 100M copper port: 10/100Base-T(X), RJ45, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning 100M PoE copper port: 10/100Base-T(X) RJ45, automatic flow control, full/half duplex mode, MDI/MDI-X autotunning, POE port, output power of 15W or 30W Gigabit SFP port: 1000Base-SFP Console port: CLI command line management port (RS-232), RJ45 Alarm port: 6-pin 5.08mm pitch terminal blocks, including 2-pin alarm terminal blocks, support 1 relay alarm output, current carrying capacity is 1A@30VDC or 0.3A@125VAC |
| LED Indicator | Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator, PoE Indicator (only for PoE products) |
| Switch Property | Transmission mode: store and forward MAC address: 8K Packet buffer size: 3Mbit Backplane bandwidth: 12.8G Switch time delay: <10μs |
| Power Requirement | Optional 24VDC, 48VDC or 220VAC, 6 pins 5.08mm pitch terminal blocks, including 4 pins power supply terminal blocks DC dual power supply redundancy, anti-reverse connection |
| Power Consumption | DC products No-load: ≤157W@48VDC Full-load: ≤157.2W@48VDC
AC products No-load: ≤9.2W@220VAC Full-load: ≤9.6W@220VAC |
| Environmental Limit | Operating temperature range: -40~75℃ Storage temperature range: -40~85℃ Relative humidity: 5%～95%(no condensation) |
| Physical Characteristic | Housing: IP40 protection, metal Installation: DIN-Rail or wall mounting Dimension (W x H x D): 70mm×160mm×130mm Weight: ≤1.6kg |
| Industrial Standard | IEC 61000-4-2 (ESD), Level 3 Air discharge: ±8kV Contact discharge: ±6kV IEC 61000-4-4 (EFT), Level 3 Power supply:±2kV Ethernet port: ±1kV Relay: ±2kV IEC 61000-4-5 (Surge), Level 3 Power supply: common mode±2kV, differential mode±1kV Ethernet port: common mode±2kV, differential mode±1kV Relay: common mode±2kV, differential mode±1kV
Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| Certification | CE, FCC, RoHS |
| Warranty | 5 years |
| Model | 100M Copper Port | 100M POE Copper Port | Gigabit SFP Slots | Power Supply | PoE Power |
| IES6220-16T4GS-2P48 | 16 | - | 4 | 12~48VDC dual power supply | - |
| IES6220-16T4GS-P220 | 16 | - | 4 | 85~264VAC single power supply | - |
| IES6220-16P4GS-2P48-120W | - | 16 | 4 | 48VDC dual power supply | 120W |
| IES6220-16P4GS-2P48-200W | - | 16 | 4 | 48VDC dual power supply | 200W |
| IES6220-16P4GS-2P24-120W | - | 16 | 4 | 24VDC dual power supply | 120W |
| IES6220-8T8P4GS-2P48-120W | 8 | 8 | 4 | 48VDC dual power supply | 120W |
| IES6220-8T8P4GS-2P48-200W | 8 | 8 | 4 | 48VDC dual power supply | 200W |
| IES6220-8T8P4GS-2P24-120W | 8 | 8 | 4 | 24VDC dual power supply | 120W |
Supporting Document
IES6220 Datasheet
V1.0.0
2020-12-22
