TNS5000D-8T: 8-Port 100M Layer 2 Unmanaged Industrial Ethernet Switch for Rail Transit

Introduction

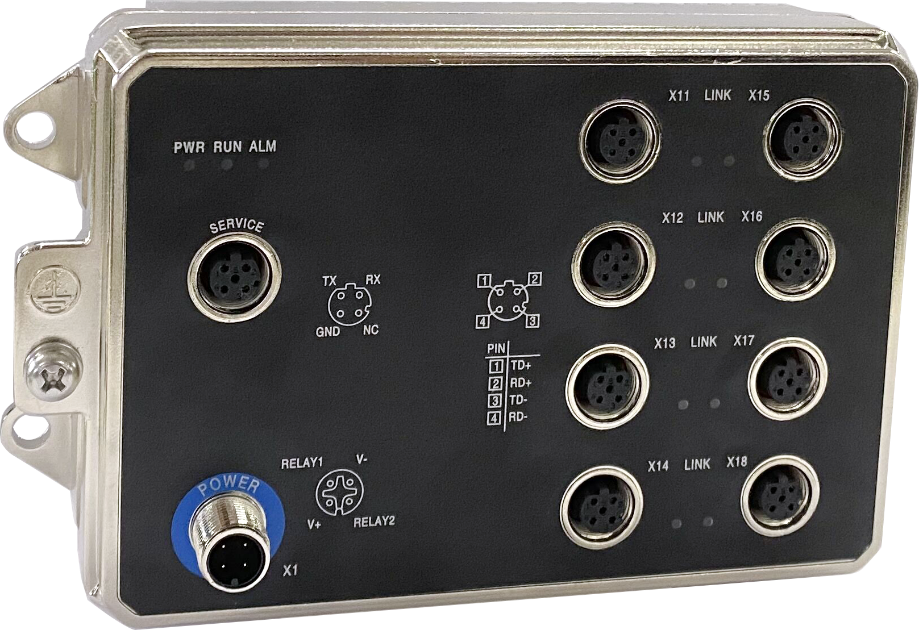

TNS5000D-8T is 8-port 100M layer 2 unmanaged industrial Ethernet switch designed for rail transit. It conforms to the EN50155 and EN50121 industry standard. Ethernet interfaces, power interface and SERVICE port use firm and reliable M12 connectors which can adapt to usage scenario with severe vibration and shock. This product provides 8 100M M12 interfaces, and it adopts wall mounting which can meet the requirements of different scenes.
When port has link failure, ALARM indicator will be bright and send out alarm, meanwhile, alarm device connected to the relay will send out alarm for rapid scene troubleshooting. Hardware adopts fanless, low power consumption, wide temperature and voltage design and has passed rigorous industrial standard tests, which can suit for the industrial scene environment with harsh requirements for EMC. It is designed for rail transit industrial and can be widely used in systems such as car PIS, CCTV, video monitoring and train control.

Standard & Protocol	IEEE 802.3 for 10Base-T IEEE 802.3u for 100Base-TX IEEE 802.3x for Flow Control
Interface	Power supply interface: M12 A-Coded 4-Pin (male) connector, the power occupies 2 pins, V- and V+ Relay alarm interface (reserved): M12 (Male), 4-Pin A-Coded, relay occupies two pins, RELAY1 and RELAY2 100M Ethernet port: 10/100Base-T(X), M12(Female), 4-Pin D-Code, Automatic Flow Control, Full/half Duplex Mode, MDI/MDI-X Autotunning Service port: CLI command line management port (RS-232), M12(Female), 4-Pin D-Code, used by technicians for debugging
Indicator	Running Indicator, Port Indicator, Power Supply Indicator, Alarm Indicator
Switch Property	Transmission mode: store and forward MAC address: 8K Buffer: 1Mbit Backplane bandwidth: 7.6G Switch time delay: <10μs
Power Supply	110VDC (66~154VDC) or 24VDC (9~36VDC), M12 (Male), 4-Pin A-Coded
Power Consumption	Full-load: 3.8W@24VDC No-load: 2.1W@24VDC
Working Environment	Operating temperature: -40~75℃ Storage temperature:-40~85℃ Relative humidity: 5%～95% (no condensation)
Physical Characteristic	Housing: IP65 protection, metal Installation: wall mounting Dimension (W x H x D): 175mm×104mm×53.2mm Weight: 0.642kg
Industrial Standard	IEC 61000-4-2 (ESD, electrostatic discharge), Level 3 l Air discharge:± 8kV l Contact discharge: ±6kV IEC 61000-4-2 (ESD, electrostatic discharge), Level 3 l Air discharge:± 8kV l Contact discharge: ±6kV IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3 l Power supply: ±2kV l Ethernet port: ±1kV l Relay: ±2kV IEC 61000-4-5 (Surge), Level 3 l Power supply: common mode±2kV, differential mode±1kV l Ethernet port: ±2kV l Relay: common mode ±2kV, differential mode±1kV Shock: IEC 61373 Free fall: IEC 60068-2-32 Vibration: IEC 61373
Authentication	CE, FCC, RoHS, REACH , EN50155, EN50121-3-2, EN50121-4, IEC61373, EN45545, Q/CR 699-2019, Q/CRRC J26-2018

Available Models	100M M12	Power supply
TNS5000D-8T-P110	8	110VDC (66~154VDC)
TNS5000D-8T-P24	8	24VDC (9~36VDC)

Supporting Document

Name

Version

Date

TNS5000D V3.0.0 Series

2023-09-19

TNS5000D系列 V3.0.0 Quick Installation Guide

2023-09-19
