As we can see the devices at field sites have multiple interfaces and use different communication protocols, which makes connectivity complex and challenging for engineers. To enable the serial-to-Ethernet connectivity simple and help industrial applications optimize their operational efficiency and increase productivity, 3onedata offers easy-to-use solutions to make sure all kinds of serial devices can be connected to an Ethernet-based network.

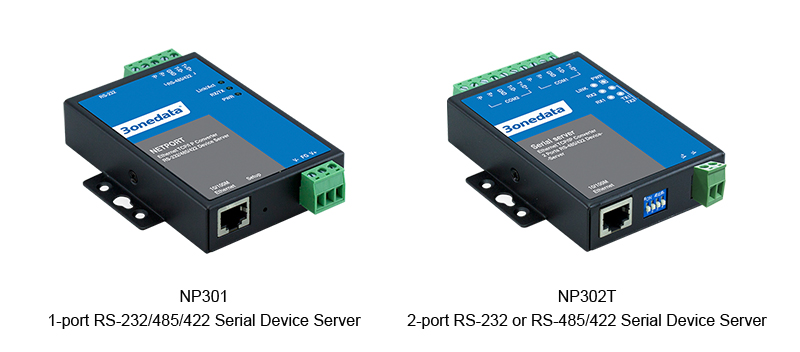

Today we are going to introduce two models of 3onedata serial device servers: NP301, a 1-port RS-232/485/422 serial device server, and NP302T, a 2-port RS-232 or RS-485/422 serial device server. Featured compact design, rich functions and industrial-approved quality, these two devices can meet your most on-site applications’ requirements. With low-power design and a MTBF exceeding 175,000 hours, they enable your serial-to-Ethernet solutions reliable and cost-effective.



Specifications
A. Support 1/2-port RS232/422/485 high-speed serial port, 300bps-115200bps line speed and non-blocking communication
B. Support 1-port 10/100Base-T(X) RJ45 copper port, automatic flow control, auto MDI/MDI-X
C. RS-232 Signal: RXD, TXD, DTR, GND, DSR, RTS, CTS
D. RS-485 Signal: D+, D-, GND
E. RS-422 Signal: T+, T-, GND, R+, R-
F. Data Bits: 5, 6, 7, 8
G. Parity: None, Even, Odd, Space, Mark
H. Stop Bits: 1, 1.5, 2
I. Multiple operating modes: RealCom, TCP Server, TCP Client, UDP Server, UDP Client, Pair Master, Pair Slave, UDP Rang and UDP Multicast
J. Single power supply, 9~48VDC input with reverse polarity protection
K. -40~75℃ wide operating temperature, 5%～95% operating humidity

Highlights
A. Support administrator account and observer account, classification of user permissions
B. Support IP address and MAC address filtering, which can achieve accurate access control easily
C. Serial ports deserve high carrying capacity, RS-485/422 interfaces support 32 polling (128 points can be customized)
D. RS-485 data direction Control: ADDC® (automatic data direction control)
E. Support cross-gate

Applications


Access Control System
Extend the network of access control system



Process Control
Achieve remote control of manufacturing process



Motion Control Monitoring
Improve remote management of on-site equipment



Remote Meter Reading

Make meter reading quick and efficient
