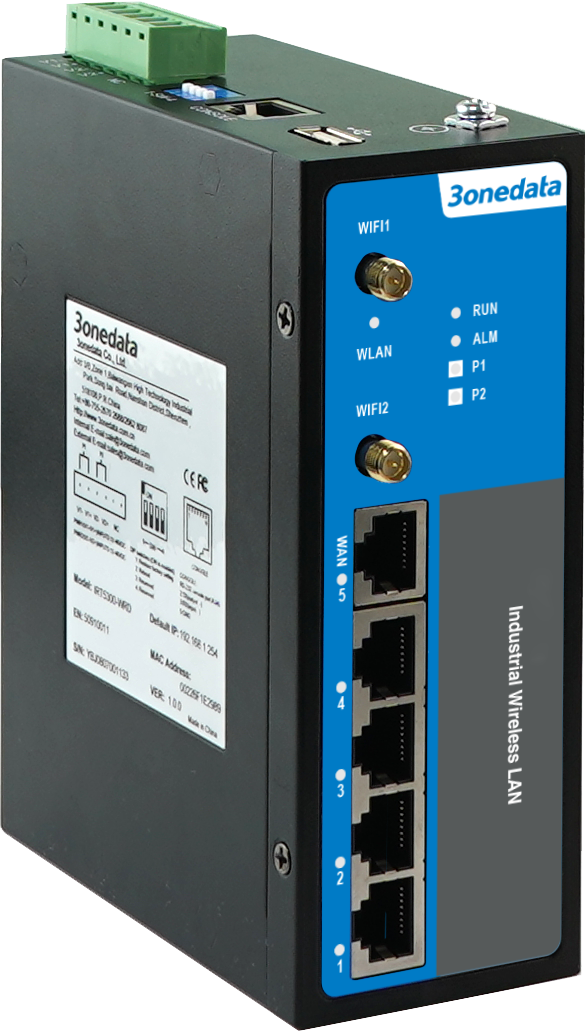

IAP2300-2N2-5T-2LVI

DIN-Rail Mounting Wireless Single-band AP

uSupport 1 WAN port, 4 LAN ports and 2 WIFI antenna interfaces, etc

uSupport four work modes including routing, AP, network bridge and client

uSupport dual power supply redundancy, power supply has non-polarity protection, input voltage: 12~36VDC

uSupport -40~75℃ wide operating temperature range

GET A QUOTE
Overview
Specifications
Models
Resources

Introduction

IAP2300-2N2-5T-2LVI is industrial wireless AP. This product supports 1 WAN port, 4 LAN ports and 2 antenna interfaces, etc. It adopts DIN-Rail mounting, which can meet the requirements of different application scenes.

The device supports four working modes: routing, AP, bridge and client. Support IEEE802.11b/g/ n wireless technology, wireless transmission rate up to 300Mbps; Support WPA, WPA2, WPA3 and other wireless encryption methods, with SSID hiding, wireless user isolation, MAC address filtering, ARP binding, DMZ settings and other security policies; Support for virtual APS, where a single AP device supports multiple SSIDs.

The input power supply is two independent power supply circuits which can ensure the normal operation of the device when one power supply fails. DIP switch can achieve one-key reboot and factory default recovery. When power supply or port has link failure, ALARM indicator would be bright and send alerts for quick troubleshooting on the scene. This product adopts fanless, low power consumption, wide temperature wide pressure industrial grade design, which can adapt to the harsh environment. It can be widely used in rail transit, security, smart city, integrated pipe gallery, production automation, smart lamp pole and other industries.

Features and Benefits

u Support work modes including routing, AP, network bridge and client

u Support high-speed wireless connection, the transmission speed of 2.4GHz can reach up to 300Mbps

u Support 2*2MIMO multi-path multiplexing technology

u Support wireless probe, it can realize personal positioning function with location engine

u Support multiple SSID settings and provide SSID hiding function

u Support multiple firewall functions, including port forwarding, ARP binding, DMZ isolation etc.

u Support AC Management, SNMP and QoS function

u Support WPA/ WPA2/WPA3 function

u Support wireless user management and flow monitoring

u -40~75℃ wide operating temperature range

u Strong anti-interference ability and high defensiveness, which can adapt to all kinds of severe environments easily
