Stock Code：688618
ICPE2600 Series

Industrial 5G Router

Support 1 Gigabit PoE WAN, 1 Gigabit LAN, 2 2.4G antenna interfaces, 2 5.8G antenna interfaces and 4 5G Sub- 6G antenna interfaces, which can meet the high bandwidth requirement of industry application.
Support 5G NR cellular wireless network, compatible with 3G/4G LTE all networks
Support 2.4GHz and 5.8GHz dual bands
Support 12~48VDC power supply input , and WAN port supports 48VDC PoE power supply input
Support -40~75℃ wide operating temperature range
GET A QUOTE
Overview
Specifications
Models
Resources

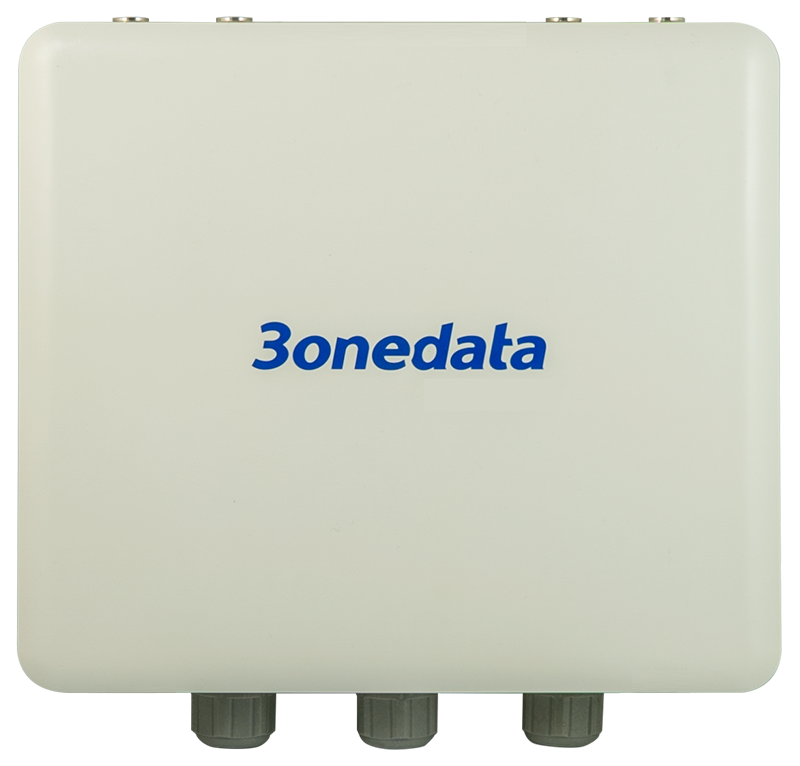

Overview of 3onedata's Industrial 5G Router ICPE2600 Series

ICPE2600 series is industrial 5G wireless router. Its PoE power supply conforms to IEEE802.3af/at protocol standard. This series has two products, provides Gigabit PoE WAN, Gigabit LAN, 2.4G antenna interfaces, 5.8G antenna interfaces and 5G Sub-6G antenna interfaces. They also adopt wall mounting or pole mounting, which can meet the requirements of different application scenes.
Network management supports multiple software functions, like 3G/4G/5G Cellular WAN, Ethernet WAN, ICMP Link Test, Link Backup, Dynamic Domain Name, Routing Table Setting, WLAN Setting, Port Forwarding, Port Redirection, DMZ Settings, UPnP Setting, VRRP, RIP, OSPF, Static DHCP, QoS etc. It also supports firewall functions, such as IP Filtering, MAC Filtering, URL Filtering and Keyword Filtering and VPN tunneling functions including GRE, IPSec, PPTP, L2TP. It can provide users with good experience with friendly design of network management system interface, simple and convenient operation.
RESET button can realize device reboot and one-key factory default restoration. All components are industrial grade, and the protection grade is IP68, which can adapt to the harsh outdoor environment. It can be widely used in rail transit, security, smart city, integrated pipe gallery, production automation, smart lamp pole and other industries.


Additional Features
Support high-speed wireless connection, 2.4GHz transmission speed could reach 300Mbps, 5.8GHz could reach 867Mbps, 5G Sub-6G could reach 2Gbps
Supports dual-band 2×2MIMO and 4 dual-RF omnidirectional antennas; Support 5G Sub-6G 4×4MIMO and 4 omnidirectional antennas
Support dual SIM card redundancy backup and Cellular network. It’s embedded with 5G wireless communication modules
Support PPPoE dialing, IP acquisition by DHCP, backup switch between static IP and 3G/4G/5G cellular networks to fit different scenes
Support network firewall, which can implement filtering and forwarding of IP, MAC, URL, keyword, etc.
Support DHCP server, which can be used for distributing IP address with different strategies
Support DDNS function, user can access server through domain names
Support VPN encryption protocols like GRE, PPTP, L2TP and IPSEC, which can ensure the privacy and integrity of data and prevent replay attack
Support port forwarding, port redirection functions and so on, which can realize address translation
VRRP, RIP, OSPF could implement dynamic router configuration
QoS supports real-time traffic classification and priority setting
Support system log, ping test and route tracking, user can conduct network diagnosis and troubleshooting.

Hot Products

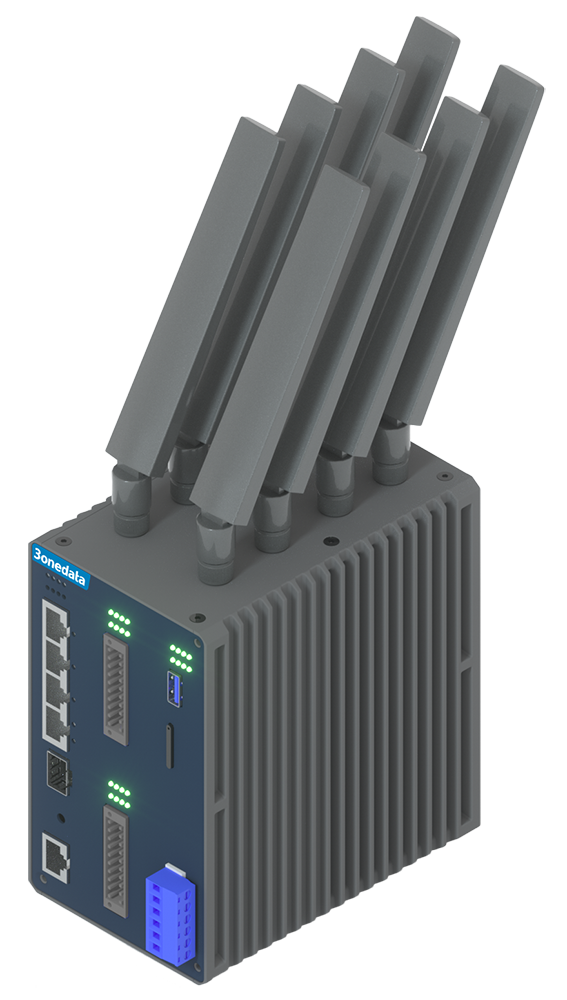

ICPE2300 Series DIN-Rail Mounting Industrial Indoor 5G Wireless Router
