Stock Code：688618
IRT5300L-5T2D-2P12_36

DIN-Rail Mounting Industrial 4G Wireless Router

uSupport 1 100M WAN port, 4 100M LAN ports, 1 RS-232/485/422 serial port, 2 2.4G WIFI antenna interfaces, 2 LTE antenna interfaces, 2 SIM card slots, etc

uSupport all 4G networks, cellular wireless network types include: FDD/TDD/WCDMA/TD-SCDMA/HSPA/CDMA/EVDO

uSupport multiple serial port work modes: Realcom, TCP Server, TCP Client, UDP Server, UDP Client

uSupport dual-SIM card redundancy backup to ensure the stable connection of wireless network

uSupport OpenVPN client, IPsec, PPTP and L2TP and provide a powerful data security mechanism

uSupport dual power supply redundancy, power supply has non-polarity protection, input voltage: 12~36VDC

uSupport -40~75℃ wide operating temperature range

GET A QUOTE
Overview
Specifications
Models
Resources

Introduction

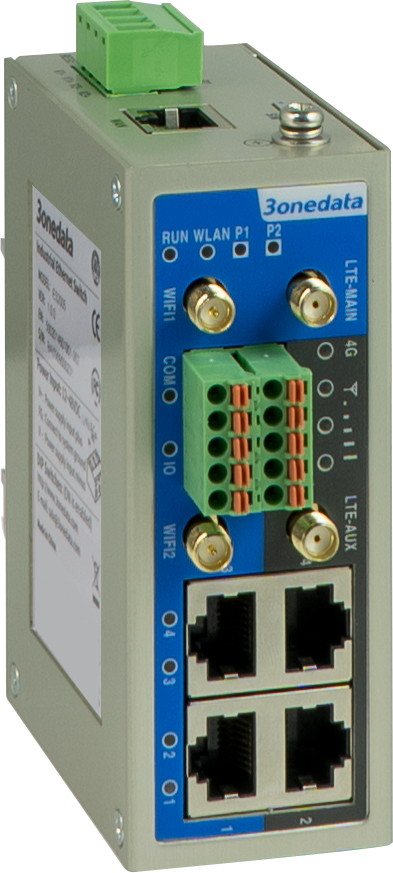

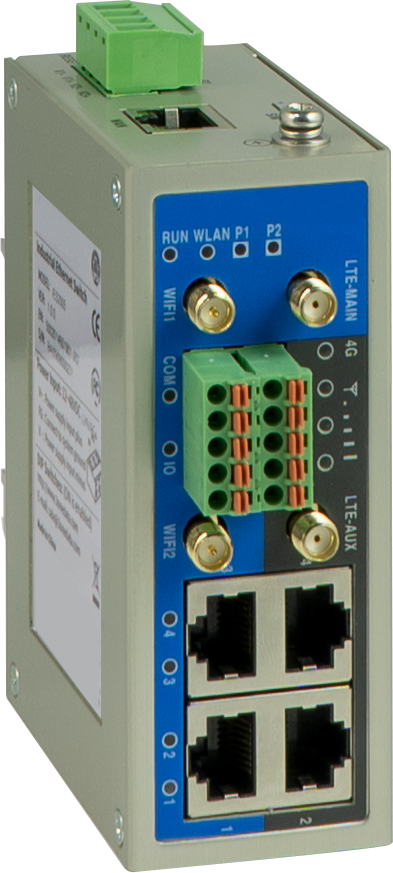

IRT5300L-5T2D-2P12_36 is industrial 4G router. It provides 100M WAN port, 100M LAN port, RS-232/485/422 serial port, I/O interface (reserved), Wi-Fi antenna interface, LET antenna interface and SIM card slot. It adopts DIN-Rail mounting, which can meet the requirements of different application scenes.

Network management supports multiple software functions, like Cellular WAN, Ethernet WAN, ICMP Link Test, DHCP Setting, VLAN Setting, Dynamic Domain Name, Routing Table Setting, WLAN Setting, Port Forwarding, Port Redirection, DMZ Setting, Serial Port Application and Setting, UPnP Setting, VRRP, RIP, OSPF and Static DHCP, etc. It also supports firewall functions, such as IP Filtering, MAC Filtering, URL Filtering, Keyword Filtering and IP address black/white list, etc. and VPN tunneling functions like GRE, IPSec, PPTP, L2TP, OpenVPN, etc. Network management system could bring you great user experience through its friendly interface design and easy and convenient operation.

Adopt dual-SIM card redundancy to ensure the stable connection of wireless network. The input power supply has two inputs, which can ensure the normal operation of the device when one power supply fails. RESET button can reboot the device and restore factory defaults. The hardware adopts fanless, low power consumption, wide temperature and wide voltage design, which can adapt to various harsh industrial field environments and can be widely used in industrial application scenarios such as factory automation, petrochemical industry, electric power monitoring, water conservancy monitoring and so on.
