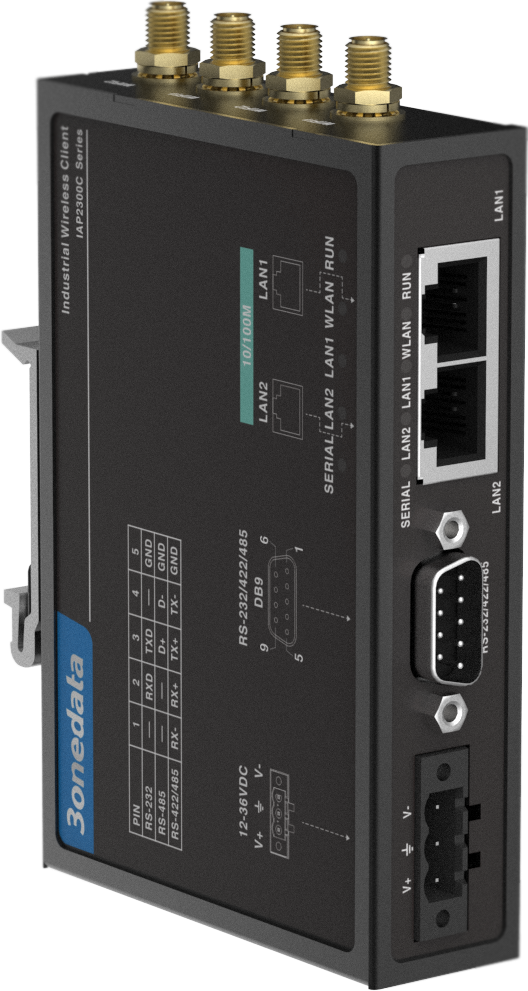

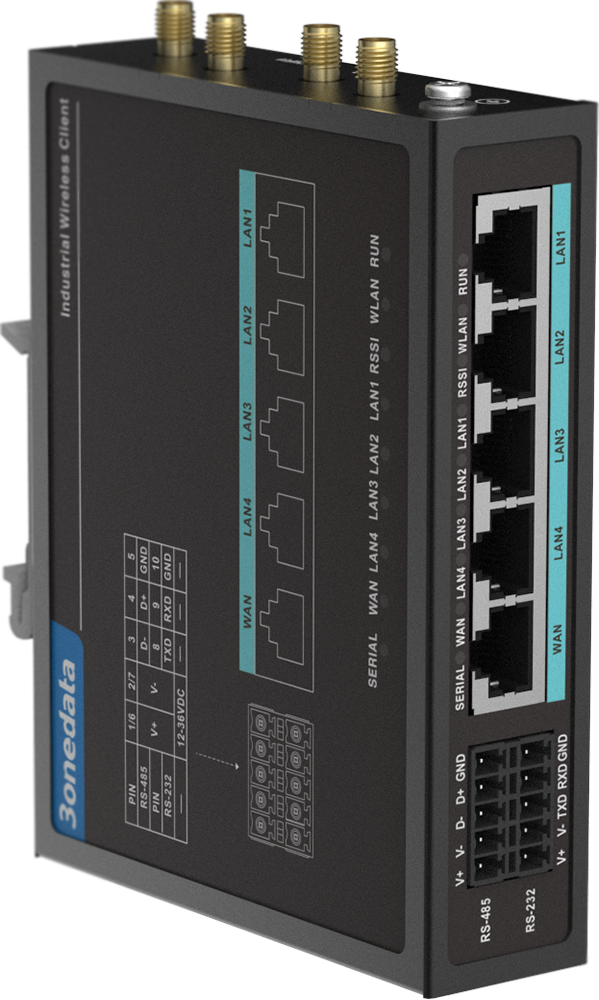

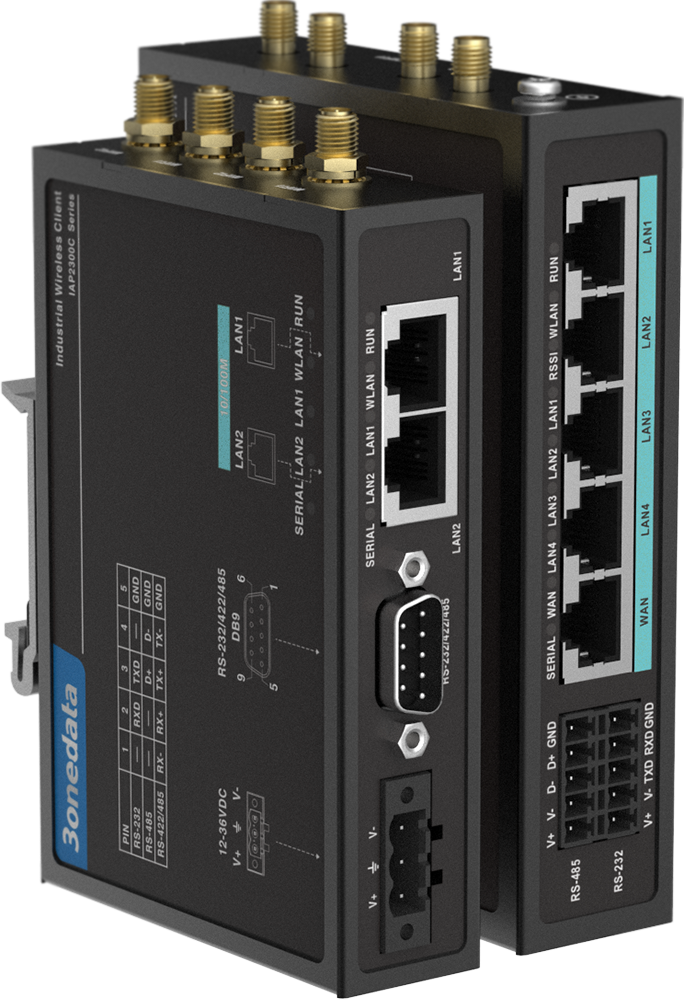

Overview of 3onedata's Industrial Wireless Client IAP2300C Series
IAP2300C series are 100M industrial wireless clients. This series have 4 products, providing 100M WAN port, 100M LAN port, 2.4G/5G dual-band antenna interface, serial port and other interfaces. This series of products provides one serial port, and supports serial port server or Modbus gateway, so that serial port devices can be equipped with networking capability immediately or realize the conversion between Modbus RTU/ASCII and Modbus TCP protocol. This series product supports DIN-Rail or wall mounting, which can meet the requirements of different scenes.
The management system supports routing, AP, bridge, client and dual link wireless work mode; Support IEEE802.11a/b/g/n wireless technology, the wireless rate of the 2E single band whole device is up to 300Mbps, the wireless rate of the 2E2E dual band whole device is up to 600Mbps. The device supports wireless encryption methods such as WPA/WPA2/WPA3 personal edition and enterprise edition, and has various security policies such as SSID hiding, wireless user isolation, IP address filtering, MAC address filtering, URL filtering, port forwarding, port redirection, ARP binding, DMZ setting, etc. Support virtual AP, that is, one AP device supports multiple SSIDs. The device supports single-band wireless fast roaming, client efficient roaming, dual-link seamless roaming. And the efficient roaming takes only about 50 milliseconds, which can meet the requirements of rapid roaming and recovery of wireless data in industrial occasions. Dual-link seamless roaming, that is, in the WLAN (Wireless Local Area Network) constituted by multiple AP, user can achieve seamless roaming without conducting the AP switching operation. In serial server mode, each serial port supports 4 TCP or UDP session connections and multiple work modes like RealCom, TCP Server, TCP Client, UDP Server, UDP Client. Under Modbus protocol mode, work modes such as RTU Master, RTU Slave, ASCII Master and ASCII Slave are supported. Up to 256 Modbus TCP Client(Master) devices can be accessed, and 128 Modbus TCP Server(Slave) devices can be connected.
The button can achieve restore factory defaults, enable debugging WLAN(2T) or restart (5T). The hardware adopts fanless, low power consumption, wide temperature, wide pressure design, through strict testing in line with industry standards, can adapt to the industrial site environment with harsh requirements for EMC, can be widely used in the robot industry: sorting robot, small freight robot, etc.
Additional Features
Support network modes like routing mode, AP mode, bridge mode, client mode and dual-link mode, support connection methods like WDS and universal bridge
The client mode supports wireless NAT connection, and the wireless network can connect with the external network through PPPoE, static IP and DHCP dynamic acquisition, and implement route switch
Support high-speed wireless connection, the transmission speed of 2E single-band can reach up to 300Mbps, the transmission speed of 2E2E dual-band can reach up to 600Mbps
Support multi-AP fast roaming technology, and the switching time of efficient roaming is less than 50ms
Support SNMP network management and Trap alarm, and allow multicast passthrough
Support multiple SSID settings and provide SSID hiding function
Support WPA/WPA2/WPA3 wireless encryption method of both personal edition and enterprise edition and TKIP/AES encryption algorithm
AC management can specify AC device information to realize directional management
Support wireless probe, it can realize personal positioning function with location engine
Roaming proxy can realize roaming proxy host across network segments, effectively avoiding the data interruption caused by the failure to update the forwarding list of upper-level device in time
Support firewall functions like IP filtering, MAC filtering, URL filtering, port forwarding, ARP binding, DMZ isolation area
Support wireless user management and user event, and support blacklist and whitelist filtering rules, wireless user online/offline notification
WMM can achieve better transmission quality of voice, video and other applications in wireless networks
Network detection can realize network diagnosis and specific network recovery operations
Support QoS policy to limit the rate of IP or MAC addresses in specified range
Network diagnosis and troubleshooting could be conducted via Ping and traceroute
Support serial port log and system log management, and realize system log synchronization to remote log server
Serial application can realize immediate networking of serial devices and support virtual COM and TCP/UDP network connection
Support serial port 300bps-115200bps line speed non-blocking communication
Support multiple serial port modes like RealCom, TCP Server, TCP Client, UDP Server, UDP Client, etc.
Support RTU Master, RTU Slave, ASCII Master, ASCII Slave and other Modbus protocol modes
Support up to 256 Modbus TCP client (master) accesses and connect up to 128 Modbus TCP server (slave) devices
Support virtual and real ID mapping to achieve flexible access between Master and Slave devices
| Standard & Protocol | IEEE 802.3 for 10Base-T IEEE802.3u for 100Base-TX IEEE802.11a/b/g/n for WLAN IEEE802.11i for wireless security IEEE802.11r for fast roaming IEEE802.11e for WWM |
| Working Mode | Route mode AP mode Bridge mode (connection: WDS bridge, universal bridge; fast roaming) Client mode (connection: WDS bridge, universal bridge, wireless NAT; fast roaming/efficient roaming) Dual-link mode (connection: Dual-WDS bridge, Dual-universal bridge, Dual-wireless NAT; Seamless roaming) Note: Only 5T (with WAN port) devices support routing mode, AP mode, QoS management, wireless probe and other functions; Only 2E2E dual-band devices support dual-link mode. |
| WLAN | WAP/WAP2/WAP3 personal/enterprise edition encryption mode, hidden wireless SSID, wireless user isolation, wireless transmission power adjustment, maximum user limit, packet segmentation and RTS threshold, China/US wireless channel, WDS, WMM |
| Management | Intranet settings, extranet settings (routing mode/wireless NAT), wireless settings-client, wireless settings-AP, AC management, SNMP management, roaming agent, seamless roaming, QoS management, wireless probe, user settings, system upgrade, timed restart, profile management, system log, log management, wireless user list, Wi-Fi real-time traffic monitoring, serial port application, serial port log, Modbus settings |
| Security Policy | Wireless users: black/white list of wireless users and event notification of wireless users. Firewall: IP filtering, MAC filtering, URL filtering, port forwarding, Port redirection, ARP binding, DMZ setting |
| Routing/Switching | Static routing (routing mode/wireless NAT) |
| Troubleshooting | Network detection, Ping, route tracing |
| Time Management | NTP Client |
| Radio Frequency | 802.11B/g/n: 2.412GHz~2.4835GHz 802.11a/n: 5.18GHz~5.825GHz RF power output: 20dBm Modulation methods: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
| Receiving Sensitivity | 802.11b: -95dBm@1Mbps, -89dBm@11Mbps 802.11g: -90dBm@6Mbps, -74dBm@54Mbps 802.11a: -89dBm@6Mbps, -72dBm@54Mbps 802.11n: -85dBm@MCS0, -67dBm@MCS7 |
| Transmitting Power | 802.11b: 23dBm@1Mbps, 20dBm@11Mbps 802.11g/a: 23dBm@6Mbps, 20dBm@54Mbps 802.11n: 23dBm@MCS0, 20dBm@MCS7 |
| Interface | Antenna interface: 2.4G/5G dual-band antenna interfaces, RP-SMA-K(Female) 100M WAN: 10/100Base-T(X) RJ45 port 100M LAN: 10/100Base-T(X) RJ45 port Serial port: RS-232/485/422 serial port adopts DB9(Male); RS-232/485 serial port adopts 2*5PIN 3.81mm pitch terminal blocks, the serial port occupies 6 pins |
| Serial Port Parameter | Standard: EIA RS-232C, RS-485, RS-422 RS-232 signal: RXD, TXD, GND RS-485 signal: D+, D-, GND RS-422 signal: TX+, TX-, GND, RX+, RX- Baud rate: 300~115200bps Data bit: 8bits Parity bit: None, Even, Odd Stop bit: 1bit Directional control: RS-485 direction adopts Automatic Data Direction Control technology Load capacity: RS-485/422 end supports 32-node polling environment Pull up/down resistance for RS-485: 4.7kΩ Work mode: Serial server: RealCom Mode, TCP Server Mode, TCP Client Mode, UDP Server Mode, UDP Client Mode, each serial port supports 4 TCP/UDP sessions Modbus gateway: RTU Master, RTU Slave, ASCII Master, ASCII Slave, support up to 256 Modbus TCP Client (Master) device accesses and 128 Modbus TCP Server (Slave) device connections |
| Indicator | Running indicator, WLAN indicator, RSSI indicator, WAN indicator, LAN indicator, serial port indicator |
| Power Supply | IAP2300C-2E-2T-1D-P12_36, IAP2300C-2E2E-2T-1D-P12_36 Input voltage: 12~36VDC, support anti-reverse connection Connection mode: 3-pin 5.08mm pitch terminal blocks IAP2300C-2E-5T-1D-P12_36, IAP2300C-2E2E-5T-1D-P12_36 Input voltage: 12~36VDC, support anti-reverse connection Connection method: 2*5PIN 3.81mm pitch terminal blocks (includes 4-pin power supply) |
| Power Consumption | IAP2300C-2E-2T-1D-P12_36 No-load at normal temperature: 2.0W@12VDC, 2.0W@36VDC Full load at normal temperature: 4.6W@12VDC, 4.8W@36VDC Full load at high temperature: 4.7W@12VDC, 5.1W@36VDC IAP2300C-2E-5T-1D-P12_36 No-load at normal temperature: 2.1W@12VDC, 2.5W@36VDC Full load at normal temperature: 5.5W@12VDC, 5.7W@36VDC Full load at high temperature: 5.5W@12VDC, 5.7W@36VDC |
| Working Environment | Operating temperature: -40~75℃ Storage temperature:-40~85℃ Relative humidity: 5%～95% (no condensation) |
| Physical Characteristic | Housing: IP30 protection, metal Installation: DIN-Rail or wall mounting Dimensions (W x H x D): 26mm×114mm×77mm(2T series) 30mm×124mm×96mm(5T series) Weight: 401g(IAP2300C-2E-5T-1D-P12_36) |
| Industrial Standard | IEC 61000-4-2 (ESD, electronic static discharge), Level 4 Air discharge:± 8kV Contact discharge: ±6kV IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3 Power supply: ±2kV Signal: ±1kV IEC 61000-4-5 (Surge), Level 3 Power supply: common mode±2kV, differential mode±1kV Signal: common mode±2kV, differential mode±1kV Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| Mtbf | >1 million hours |
| Authentication | CE, FCC, RoHS |
| Warranty | 5 years |
| Available Models | 2.4g/5g Antenna Interface | 100m Copper Port | Serial Port | Power Supply |
| WAN | LAN | RS-232/485/422 | RS-232/485 |
| IAP2300C-2E-2T-1D-P12_36 | 2 | — | 2 | 1 | — | 12~36VDC |
| IAP2300C-2E2E-2T-1D-P12_36 | 4 | — | 2 | 1 | — |
| IAP2300C-2E-5T-1D-P12_36 | 2 | 1 | 4 | — | 1 |
| IAP2300C-2E2E-5T-1D-P12_36 | 4 | 1 | 4 | — | 1 |
Accessories
| Product Type | Product Number | Remark |
| 2.4G/5G omnidirectional antenna, gain 2dBi, frequency 2400-2483MHz, 5150-5850MHz, RP-SMA-J interface, antenna length 108.5mm | 3005040132 | 2E single frequency series (standard) 2E2E dual-frequency series (optional) |
| Magnetic base cable of suction cup, frequency 0-6GHz, RP-SMA-K/RP-SMA-J interface, black cable length is 1.2m | 3005040092 | Optional |
| 2.4G/5G omnidirectional antenna, gain 2dBi, frequency 2400-2500MHz, 5150-5850MHz, RP-SMA-J interface, antenna length 108mm. | 3005040133 | Optional |
| 2.4G/5G omnidirectional antenna, gain 3dBi, frequency 2400-2483MHz, 5150-5850MHz, RP-SMA-J interface | 3005040108 | Optional |
Supporting Document
IAP2300C Series QIG
2022-09-22
IAP2300C Series Datasheet
2022-09-22
